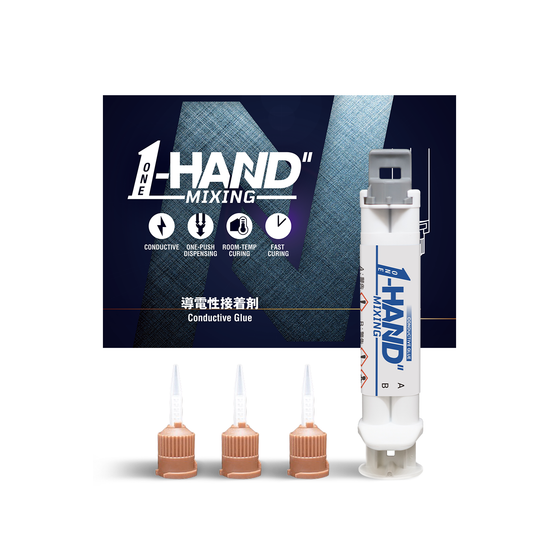

Professional-grade silver-filled conductive adhesive, easy dispensing with one push, cures at room temperature and can be stored at room temperature, suitable for various materials for both printing and bonding, maintains conductivity even when bent, and lasts long after bonding.
◎What is ONE-HAND MIXING! It is a professional-grade conductive adhesive developed by a manufacturer of adhesives that offers a rich lineup for automotive and industrial equipment. Despite being a two-component adhesive, it requires no extra effort for work! Just press to easily weigh, mix, and apply. The narrow outlet allows for dot application and line drawing. ◎It reacts and cures at room temperature, eliminating the need for heating. Moreover, after curing, it achieves a low resistance comparable to solder (around 10^-4 Ω·cm). ◎Despite having a tough coating, it does not crack when bent. Additionally, it remains conductive even when bent. It is highly compatible with various materials such as copper, aluminum, stainless steel, printed circuit boards, ABS, glass, and paper. ◎The cured coating is strong and has good scratch resistance. It is durable against scratches from coins and similar objects, ensuring longevity. Furthermore, it does not dissolve when wiped with solvents. ◎Since the main agent and hardener are separated, there is no need for refrigeration or freezing, allowing for room temperature storage. As a non-hazardous product, it does not require special storage. Additionally, it complies with VOC, REACH, and RoHS regulations, making it environmentally friendly. ◎We can also propose systems that support mass production and automation.
Inquire About This Product
basic information
There are two types of sales formats. ◎ Disposable set of 3 bottles ◎ Large capacity type containing more than 3 bottles' worth of liquid in one bottle <Properties> ■ Color: Silver-gray ■ Tack-free time (25°C): Approximately 2 hours ■ Resistance value appearance time (25°C): More than half a day ■ Resistance value stabilization time (25°C): More than 2 days ■ Volume resistivity at stable state: 2×10^-4 Ω･cm ■ Adhesion (25°C): 5MPa (copper), 6MPa (aluminum), 6MPa (SUS), 5MPa (FR4), 4MPa (ABS) ■ Shelf life estimate: 3 months after purchase * Please check the detailed data in the TDS. <Cautions> In winter or other low-temperature conditions, the reaction may slow down, so please allow sufficient time for the resistance value to stabilize before it hardens. Additionally, warming it with a hairdryer or similar device after application can help stabilize the resistance value more quickly.
Price information
Regular price: 9,980 yen/set <Disposable Set> https://amzn.asia/d/8auJDFA <Large Capacity Type> https://amzn.asia/d/7jF80wn
Price range
P1
Delivery Time
P3
Applications/Examples of results
It is ideal for research and development purposes in companies and universities, as well as for specialized repairs and DIY repair work. <Examples of Use> - Ground connection materials for circuit boards - Circuit formation without etching - Conductive bonding for heat-sensitive substrates and components - Conductive adhesion for metals and glass that are difficult to solder - Repair of heating wires and terminals on car rear windows - Repair and maintenance of home appliances and audio equipment - Conductive work outdoors where soldering irons cannot be brought in - For those who are inexperienced with soldering - Contributes to SDGs! Reduction of heating processes
Detailed information
-
Silver-filled conductive adhesive, two-component, no mixing required, cures at room temperature and can be stored at room temperature, flexible and high adhesion.
-
Easily with one hand.
-
Various ways to use it, whether as a point or a surface.
-
Low resistance approaching solder.
-
Can conduct electricity even when bent.
-
Excellent chemical resistance.
-
Good scratch resistance
-
Defroster lines for rear windows, for conductive bonding in places where solder cannot be used for repairs and fixes of home appliances and toys.
-
There is a system that can be automated. Consideration for mass production is possible.
catalog（2）
Download All Catalogs
Company information
Since our establishment in 1970, we have consistently built our products based on the technology and know-how we have cultivated as a resin formulator, while carefully responding to our customers' needs. We offer a lineup that includes not only epoxy products (liquid and powder) but also insulating materials based on urethane and silicone, as well as coating materials and conductive paste materials. Our applications range widely, primarily focusing on electronic components, but also including automotive parts, industrial equipment parts, sports goods, and everyday items. We deliver our products not only within Japan but also to Europe, China, Southeast Asia, and around the world.
