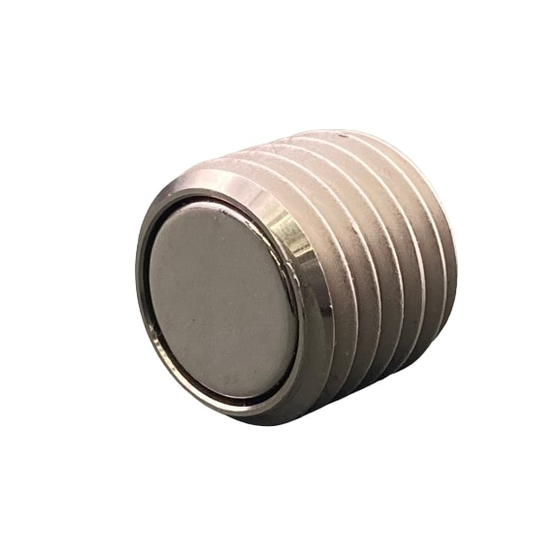

This is a screw holder with a magnet that can be attached to screw holes. It features a strong neodymium magnet at the tip of the screw.
The opposite side of the magnet has a hexagonal hole, allowing it to be tightened and removed with a hex wrench. Sizes range from small diameter M4 to a maximum of M16. Due to its short overall length, it can also be installed on thin plates.
Inquire About This Product
basic information
【Material】 Screw holder body: SCM435 / Electroless nickel Magnet: Neodymium / Nickel plated 【Size】 M4-L7 ... Holding force 2N M5-L8 ... Holding force 3N M6-L10 ... Holding force 5N M8-L11 ... Holding force 13N M10-L13 ... Holding force 20N M12-L14 ... Holding force 32N M16-L14 ... Holding force 71N
Price range
Delivery Time
Applications/Examples of results
【Usage】 Effective for adjusting angles during assembly work or inspections.
Detailed information
-
SHMS4-7 ... M4, L7mm / Adhesive force 2N SHMS5-8 ... M5, L8mm / Adhesive force 3N SHMS6-10 ... M6, L10mm / Adhesive force 5N SHMS8-11 ... M8, L11mm / Adhesive force 13N SHMS10-13 ... M10, L13mm / Adhesive force 20N SHMS12-14 ... M12, L14mm / Adhesive force 32N SHMS16-14 ... M16, L14mm / Adhesive force 71N
