A great product that allows you to easily check the flow of cooling water in the peripheral piping of molding machines and similar equipment!

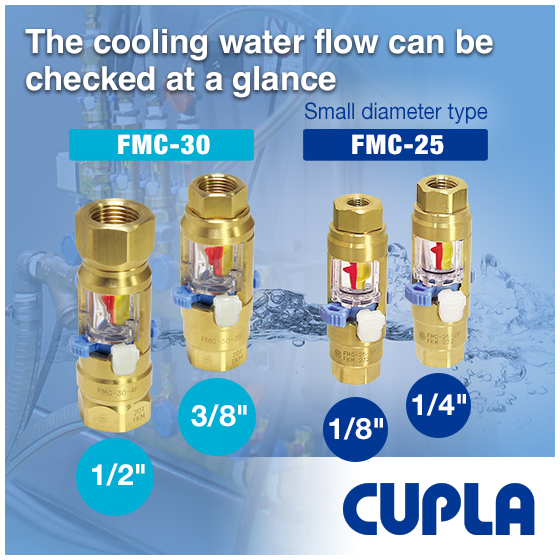

The "Flow Monitor" is a product that contributes to the prevention of defects such as molding failures by confirming the flow of cooling water in piping for molding machines and the like. It allows for visual confirmation of fluid flow through the rotation of two colored blades at low flow rates (0.6L/min), and the monitor lens can be replaced while still connected to the piping. 【Features】 ■ Visual confirmation of fluid flow through the rotation of two colored blades at low flow rates (0.6L/min) ■ Monitor lens can be replaced while still connected to the piping *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
Related Videos
basic information
【Specifications (Partial)】 ■ Main body material: Brass ■ Maximum operating pressure: 1.0MPa {10kgf/cm²} ■ Pressure resistance: 1.5MPa {15kgf/cm²} ■ Seal material (indication symbol): Fluoro rubber (FKM) ■ Operating temperature range: +10˚C to +80˚C *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Applicable Fluid】 ■Water *For more details, please refer to the PDF document or feel free to contact us.
