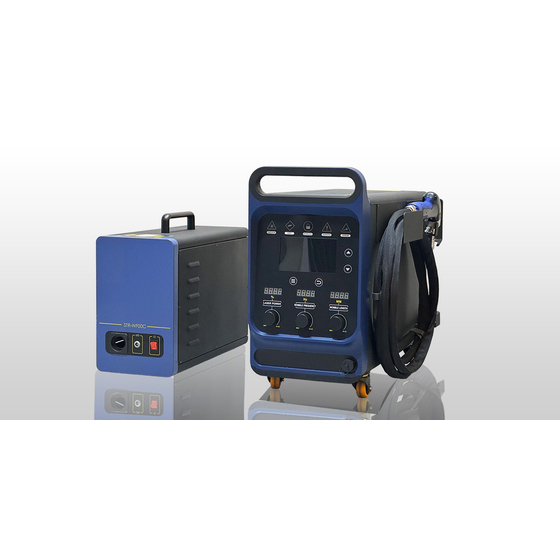

Improvements have been made to overcome the challenges that conventional water-cooled and air-cooled laser welding machines could not address! High performance achieved at a low price!
=== Improvements on Unresolved Issues === - No power attenuation even after long-term use, ensuring sufficient welding depth. - Fewer easily breakable parts compared to water-cooled systems. - No need to select complex parameters, making it easy for anyone to operate. - A wide usable temperature range of -20°C to 60°C compared to water-cooled systems. - The head does not easily become hot, allowing for continuous use. - Compact and lightweight head for better workability. === User-Friendly Functionality for Beginners === There is no need to select complex parameters, and features such as displaying the laser irradiation point with a laser pointer make it easy for anyone to operate. Beginners can weld easily and neatly. === Lightweight Head for Extended Use === The head does not easily become hot, allowing for continuous use. The head is compact and lightweight at 600g, providing good workability. === Malfunction Prevention Design with 8 Layers of Protection === Monitoring functions for items such as "gas pressure," "temperature of the welding head," and "protection glass installation" prevent unintended laser irradiation due to malfunctions.
Inquire About This Product
basic information
■ Rated output (W): 900, 1200, 1500 ■ Power supply (V): Single-phase 220 (60/50Hz) ■ Power consumption (W): 3800~ ■ Laser wavelength (nm): 1064 ± 10% ■ Cooling method: Double circuit refrigerant direct cooling ■ Operating temperature (°C): -20 to 60 ■ Weight (kg): 43~ ■ Head weight (kg): 0.6 ■ Cable length (m): 5m (up to a maximum of 10m) ■ Welding modes: Spot welding / Continuous spot welding / Pulse welding / Continuous welding
Price range
Delivery Time
Applications/Examples of results
Anyone can easily weld with fiber welding. ◎ Butt welding ◎ Internal angle welding ◎ External angle welding ◎ Overlap welding ◎ Spot welding Please feel free to contact us.
