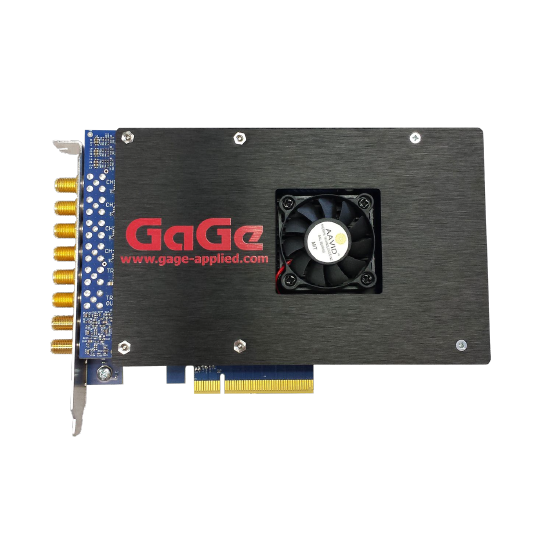

14-bit, 2CHs @ 250MS/s, PCIe Gen3 digitizer
This is a 2-channel, 14-bit resolution A/D conversion board that supports a maximum A/D sampling rate of 250 MS/s with an input bandwidth of up to 125 MHz.
Inquire About This Product
basic information
● 14-bit vertical A/D resolution with 2 digitizing input channels ● Maximum sampling rate of 250 MS/s per channel ● Dedicated set of 50Ω input channel pair and 1MΩ input channel pair (DC coupling) (AC option available) ● 125 MHz analog input bandwidth ● Standard 4 GS (8 GB) onboard dual-port sample memory ● 6 GB/s PCIe Gen3 x8 transfer rate (when using onboard memory) ● 1 GB/s PCIe Gen3 x8 real-time streaming rate to host ● Easy integration with external or 10 MHz reference clock input and clock output
Price range
Delivery Time
Applications/Examples of results
Wideband signal analysis Broadband stimulus/response testing Satellite communication testing Radar design and testing Electronic warfare (EW) testing Signal intelligence (SIGINT) Spectrum monitoring Ultrasound imaging Non-destructive testing (NDT) Mass spectrometry Optical detection and ranging (LiDAR) Life sciences Particle physics
