Quantifying the thread pull of liquid samples! You can directly evaluate the way the thread is pulled.

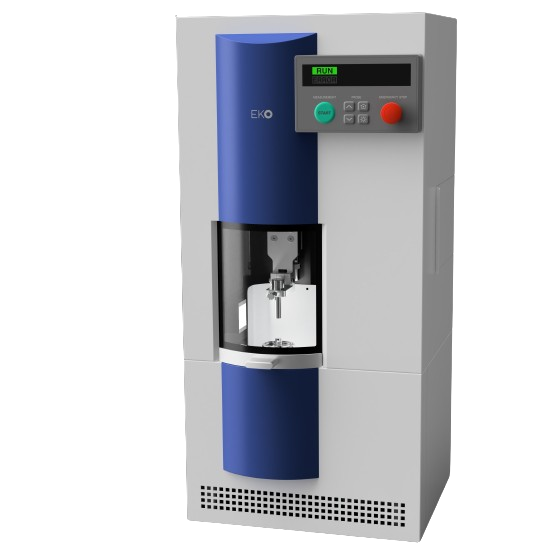

We would like to introduce the elongational viscometer 'FV-30' handled by Eihon Seiki Co., Ltd. By drawing a thread from the sample and measuring and analyzing its behavior at that time, it is possible to directly evaluate the way the thread is drawn. Additionally, the behavior of the liquid sample as it draws the thread is analyzed, and the thread-drawing property is quantified in the form of elongational viscosity. 【Specifications (partial)】 ■ Viscosity range: 200 mPa·s or more (depending on the sample) ■ Probe diameter: Φ4mm, Φ6mm ■ Probe movement speed: 0.1–30mm/sec ■ Probe movement distance: 50mm ■ Filament imaging range: vertical direction 10mm *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Measurement Examples】 ■ Extension Strain - Extension Viscosity ■ Time - Diameter ■ Shear Rate - Shear Viscosity *For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Eihon Seiki consists of two business areas: "Environment and New Energy" and "Physical Property Analysis." The Physical Property and Analysis Division imports and sells unique products from around the world. In addition to ISO 9001 and ISO 14001, we have obtained ISO 17025 accreditation for "Calibration of Direct Solar Radiation Meters and All-Sky Solar Radiation Meters" and "Viscosity Measurement and Viscosity Meter Calibration."
