Solar panels, high output, rooftop & power plant, bifacial power generation.

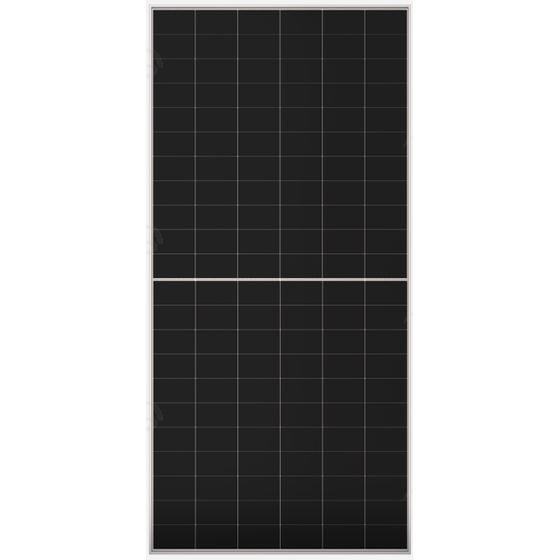

LR7-72HYD-625~660M
TaiRay wafers and BC technology HPBC 2.0: high efficiency, high output, reliability, and excellent lifetime power generation; bifacial power generation; double glass solar cell modules.
In addition to the output on the front side, the durability provided by the dual-sided power generation and dual-sided glass structure on the back side, along with the new technology HPBC 2.0 of N-type back contact cells, is expected to lead to further improvements in efficiency, output, reliability, temperature characteristics, low light performance, and IAM (Incident Angle Modifier) performance, resulting in a reduction in power generation costs.
Inquire About This Product
Related Videos
basic information
Mechanical Characteristics Number of Cells: 144 pieces (6×24) Junction Box: IP68, Bypass Diodes ×3 Connector: MC4 Compatible Cover Glass: Front: 2.0mm High Transmittance ARC Tempered Glass Back: 2.0mm Tempered Glass Frame: Anodized Aluminum Alloy Module Weight: 33.5 kg Module Dimensions: 2382×1134×30mm Packaging Specifications: 36 pieces/pallet, 144 pieces/20' GP container, 720 pieces/40' HC container Product Warranty: 12 years Linear Output Warranty: 30 years 1st Year: -1.0% (Guaranteed Value: 99.0%) From 2nd Year Onwards: -0.35%/year
Price range
Delivery Time
Applications/Examples of results
Product specifications are subject to change without notice. Please be sure to inquire about specifications, output, and delivery dates when considering specific details.
Line up(1)
Model number | overview |
---|---|
LR8-66HYD-635~670M | Hi-MO 9 |
catalog(16)
Download All CatalogsNews about this product(9)
Company information
The total production volume of the four major processes in solar cell manufacturing is the largest in the world, and wafer production volume is also number one. Specializing in monocrystalline. Although they fully entered the module market in 2014, they achieved the number one global market share from 2020 to 2022, along with an AAA rating. Every year, they actively invest in research and development, continuously supplying high-performance new products to the market that excel in reliability and quality through the latest technologies.
