A new ultrasonic food cutting technology that can cut widths of up to 600mm with a single blade!

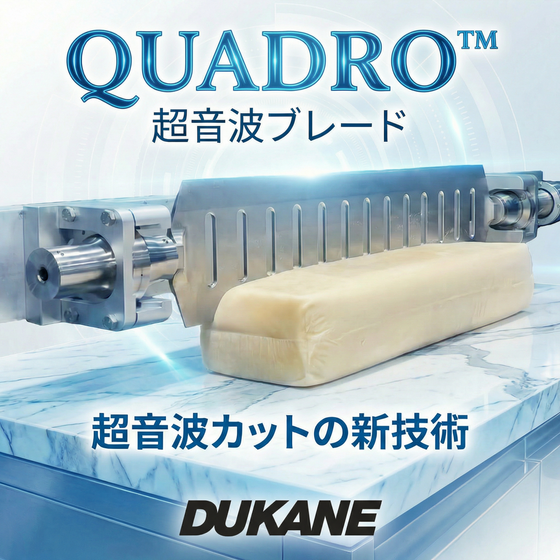

The "Quadro" ultrasonic blade for food cutting, utilizing Duquesne's patented technology, allows for cutting widths of up to 600mm with a single horn, unlike traditional ultrasonic food cutters that use a horn (blade) in a different manner. Additionally, conventional ultrasonic blades have a thicker upper part of the blade, which imposes a height limitation on what can be cut. When attempting to cut taller ingredients, a one-wavelength horn (as opposed to the half-wavelength of a standard horn) had to be used. However, because the Quadro blade maintains a consistent thickness, there are no height limitations for cutting, significantly expanding the range of compatible ingredients.
Inquire About This Product
Related Videos
basic information
Frequency: 20kHz Cutting width: Two types of 450mm/600mm Cutting height: No restrictions Holding method: Dual support specification that holds both sides of the blade (horn)
Price information
Please contact us.
Delivery Time
Applications/Examples of results
Cheese that tends to stick to the blade, frozen cakes that are prone to losing their shape (also at room temperature), and doughs for cookies and pies.
