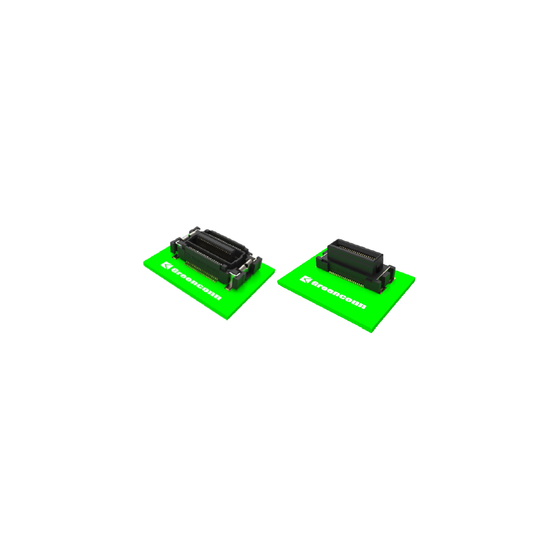

We also support customizations such as pin removal! Male and female connectors from Greenconn.
The "0.5mm pitch floating connector" can absorb shifts in the X, Y, and Z directions during engagement. The movable range is ±0.50mm in the X, Y, and Z directions, and the operating temperature range is from -40°C to +105°C. We offer both male and female sides, and we can also accommodate customizations such as pin removal. 【Specifications (partial)】 ■ Movable range: ±0.50mm in X/Y/Z directions ■ Engagement direction: Vertical ■ Voltage resistance: 250V (AC) ■ Rated current: 0.4A ■ Contact resistance: Maximum 100mΩ ■ Insulation resistance: 500MΩ or more *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Other Specifications】 ■Vibration Frequency: 10 to 55 to 10 Hz ■Insertion/Removal Count: 30 times ■Plating: Gold 0.6μ” MIN ■Operating Temperature Range: -40℃ to +105℃ ■Number of Pins: 2 rows * 220 pins *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
Company information
Import and sales of BGA sockets, PGA sockets, various connectors, floating connectors, MXM connectors, RJ45, board-to-board connectors, D-sub, SODIMM DDR4 sockets, SATA, pin headers, battery holders, and LEDs. The service for modification and alteration of electronic boards has been transferred to our subsidiary, Kaz Ship Co., Ltd. Handling manufacturers: XFMRS (RJ45 connectors, common mode chokes) Advanced Interconnections (IC sockets, custom connectors) LOTES (CPU sockets, RJ45 connectors) Neltron Industrial (M.5 waterproof cables) Greenconn (floating connectors, pin headers, pin sockets)
