Able to absorb deviations in the X, Y, and X directions during fitting! Also supports customizations such as pin removal.

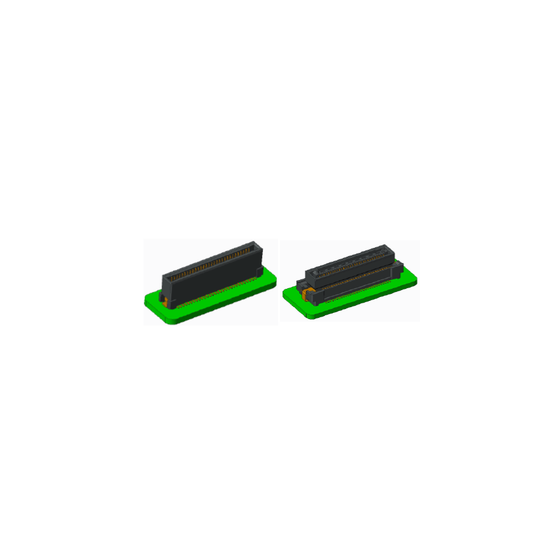

The "0.8mm pitch floating connector" is a connector made by Greenconn that prevents the resin from moving by coupling the mounting hardware to the resin part. This product can absorb shifts in the X, Y, and Z directions during mating, with a movable range of ±0.80mm MAX in the X/Y axis and ±0.5mm in the Z axis. Custom options such as pin removal are also available, and both male and female sides are provided. 【Specifications (partial)】 ■ Movable range: ±0.8mm MAX in the X/Y axis, ±0.5mm in the Z axis ■ Mating direction: Vertical ■ Voltage rating: 250V (AC) ■ Rated current: 0.5A ■ Contact resistance: 100mΩ MAX ■ Insulation resistance: 500MΩ or more *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Other Specifications】 ■Vibration Frequency: 10 to 55 to 10 Hz ■Insertion/Extraction Count: 100 times ■Plating: Gold 0.6μ”MIN, 3μ”MIN (contact area) ■Operating Temperature Range: -40℃ to +105℃ ■Number of Pins: 2 rows * 30 pins, 2 rows * 40 pins *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
