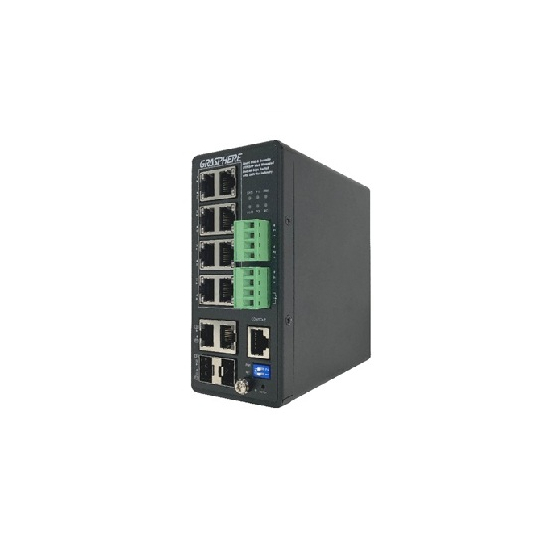

Operating environment -40 to 70℃. A highly durable, ultra-compact industrial PoE switch has arrived!
This is our company's first industrial PoE switch, featuring a durable metal housing. It is highly resistant to high and low temperatures and humidity, ensuring high durability. It has obtained EMS certification, EMI certification, as well as FCC and CE certifications, making it a product with excellent safety and reliability.
Inquire About This Product
basic information
- Industrial high durability - Ultra-compact - All Giga ports (PoE×8, Up-Link (RJ45/SFP combo)×2) - IEEE802.3at (maximum 30W per port), IEEE802.3af (maximum 15.4W per port) - Maximum PoE power supply 240W (maximum 30W per port) - Equipped with DMV (high-function web management) - Operating environment: Temperature -40 to 75°C, Humidity 5~95% RH - EMS certification, EMI certification, FCC, CE - Fanless design, metal housing, DIN rail compatible - Power redundancy support - Input power DC 48~57V (Can be connected on-site using terminal block connectors) *Please prepare a separate AC/DC converter when connecting to AC power (Reference: Meanwell SDR-480-48)
Price range
Delivery Time
Applications/Examples of results
- Operating temperature range of -40 to 70°C (without condensation) and humidity of 5 to 95% RH. It can be mounted on a DIN rail (mounting brackets included). With dimensions of 62mm × 135mm × 130mm, it features a super compact metal housing and fanless design, allowing for flexible installation locations and easy maintenance, capable of operating normally even in harsh environments with dust and other particles. - Obtained FCC certification and CE certification. It also meets EMS and EMI standards related to electromagnetic waves and noise. Additionally, it has passed EN 60068-2-6 (Vibration Testing), EN 60068-2-27 (Shock Testing), and EN 60068-2-32 (Free Fall Testing), making it a device with high safety and reliability according to global standards. - Equipped with 8 PoE ports and 2 uplink ports (RJ45/FSP combo ports), all-Gigabit. Each PoE port can supply up to 30W, with a total power supply capacity of up to 240W for the entire device. This enables powerful power delivery and flexible adaptation to network environments.
Detailed information
-
High durability, ultra-compact metal housing. Operating environment: temperature -40 to 70°C, humidity 5 to 95% RH. DIN rail mounting is also possible!
-
Obtained FCC and CE certifications, EMS standards, EMI standards, and various other certifications.
-
All-Giga ports and RJ45/FSP combo ports are standardly implemented. Each port can supply up to 30W, with a maximum total power supply of 240W.
Company information
Glassphere Japan Co., Ltd. is an IoT device manufacturer focused on surveillance camera systems. In the spring of 2019, it became a subsidiary of CSP Central Security Patrol Co., Ltd., a major security company listed on the Tokyo Stock Exchange. We offer a "3-year warranty" and "advance send-back" service for various products, ensuring that our customers' operations are not interrupted. Additionally, we continuously gather the latest technological information and will provide various devices at quality and cost that satisfy our Japanese customers. Please feel free to contact us.
