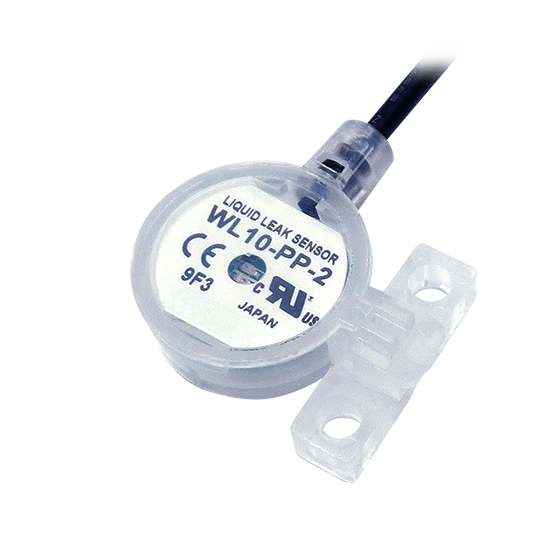

Leak detection sensor (liquid leak sensor) that does not require a light shield and amplification circuit.
● Usable in various fields thanks to unique optical technology ● Leakage detection possible without a light shield and amplification circuit ● Corrosive liquid leakage detection possible with PFA material housing ● Compact and thin (φ 25 mm, t = 10 mm) ● Lead-free compliant, UL / CE marking compliant
Inquire About This Product
basic information
【Main Specifications】 Operating Temperature: -10 to 60 ℃ Operating Humidity: 35 to 85 %RH Applicable Media: Water / Liquids that do not corrode PFA Case Material: PP / PFA Weight: Approximately 30 g (WL10- * P-2), Approximately 50 g (WL10- * P-4, WL10- * F-2), Approximately 80 g (WL10- * F-4) Operating Voltage: 12 to 24 ± 10 % Current Consumption: 10 mA Operation: Normal: ON Green LED lit, Leak detection: Output OFF, Red LED lit
Price range
Delivery Time
Applications/Examples of results
Semiconductor manufacturing equipment, industrial machinery, pneumatic equipment, medical analyzers, etc.
