Realistic Reproduction Level Pocket2

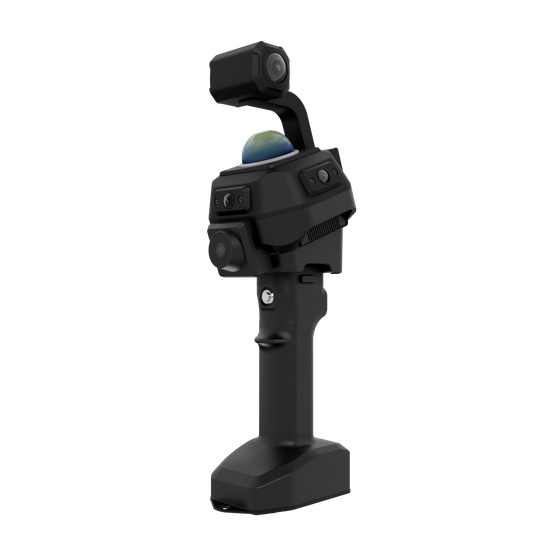

Through a partnership agreement with the advanced sensor manufacturer Manifold Tech, we will begin sales of their latest mobile laser scanner, the "MindPalace Pocket2," as the exclusive distributor in Japan starting in the fall of 2025. While maintaining the high precision of point cloud data required by public surveying users, we will pursue further "reproducibility" by equipping the device with six dedicated cameras, enabling the acquisition of realistic and highly accurate three-dimensional data. Manufacturer: Manifold Tech Limited
Inquire About This Product
basic information
■System Parameters Dimensions: Main Unit: L115 × W113 × H120 mm / H180 mm (when 3DGS camera is mounted) Battery: L125 × W80 × H193 mm Storage: 1TB, Internal high-speed SSD Single Battery Operating Time: 150 minutes Battery: 5000mAh Port: Type-C Weight: Main Unit: 940g Battery: 485g Protection Rating: IP56 ■Camera Parameters Number of Installed Cameras: 6 Resolution, etc.: For SLAM construction: 2MP camera × 3 For 3DGS: 50MP camera × 2 *1 For detailed photography: 50MP camera × 1 ■Laser Sensor Parameters Laser Sensor Name: Livox Mid360 Scan Accuracy: 2cm Scan Range/Measurement Distance: 40m @ 10% reflectivity, 70m @ 80% reflectivity Scan Rate: 200,000 points/second Wavelength: 905nm FOV: Horizontal 360°, Vertical -7°~52° ■Data Results Relative Accuracy: ≤1cm Absolute Accuracy: ≤5cm (average ≤3cm) *2
Price information
We plan to start estimates, product descriptions, demonstrations, etc. around the summer of 2025.
Delivery Time
Applications/Examples of results
We will update it as needed.
Company information
We are a technology startup focused on specialized measurement services in the construction industry, promoting "efficiency in measurement operations" and "digitalization of measurement results" using technologies such as drones. Our team, composed mainly of members with experience in business development and research and development at major construction consulting firms and aerial surveying companies, is characterized by its deep understanding of existing business content and roles, measurement methods and required outcomes, as well as relevant regulations, which informs our development process. Our main offerings include the LiDAR service "FLIGHTS SCAN" for surveying operations and the software "FLIGHTS CONTROL" for bridge inspections.
