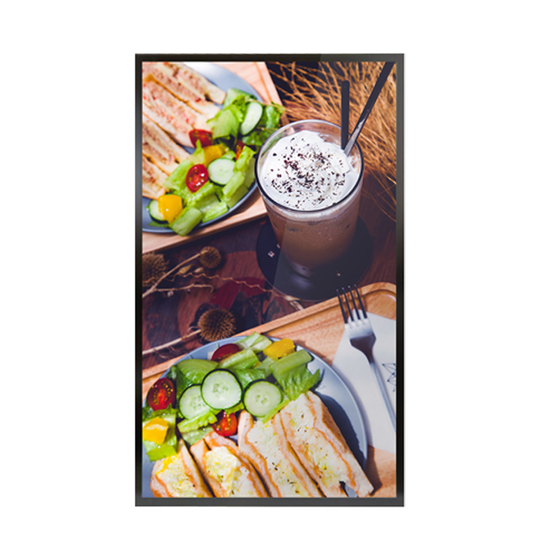

55 inches, slim bezel design, high brightness 2,500 cd/m², smart operation with built-in Android, compatible with AG UV/IR reinforced glass.
【LITEMAX IPPC-5500-AML0-WG00-1001 Features】 ■ 55" TFT LCD (Aspect Ratio 16:9) ■ Supports ultra-high brightness of 2,500 nits for high visibility even in direct sunlight ■ Utilizes ultra-long-life LED backlight (MTBF: 100,000 hours) ■ Low power consumption design ■ Wide operating temperature range of -30 to 50°C ■ Features 5mm thick AG (Anti-Glare) UV/IR reinforced glass ■ Supports 1×RJ45, 2×HDMI, 1×USB3.0, and 1×USB2.0 ■ Dustproof and waterproof (IP56) and shock-resistant (IK10) ■ Integrated player with high-performance AML T982 Quad-Core ARM Cortex-A55 ■ Built-in Android 14.0 OS, capable of content distribution and management via network ■ Smooth video playback with 32GB eMMC storage and 4GB memory ■ LCD blackout prevention technology (H-Tni 110°C) ■ Supports automatic brightness adjustment and infrared remote control operation
Inquire About This Product
basic information
Specifications - Screen Size: 55 inches - CPU: AML T982, Quad-Core ARM Cortex-A55 CPU - Memory: DDR4 4GB - Storage: eMMC 32GB - LCD Panel Brightness: 2,500 cd/m2 - Display Resolution: 1920 x 1080 - Aspect Ratio: 16:9 - Contrast Ratio: 1500:1 - Viewing Angle: Horizontal 178 degrees / Vertical 178 degrees - Input Connectors: 1×RJ45, 2×HDMI, 1×USB3.0, 1×USB2.0 - Dimensions: 1260.6 x 731.4 x 108mm - Weight: 58 Kg - Operating Temperature: -30 to 50℃ - OS: Built-in Android 14.0 OS - Warranty Period: 1 year free of charge
Price information
Open price
Delivery Time
Applications/Examples of results
Digital signage applications
Line up（1）
| Model number | overview |
|---|---|
| IPPC-5500-AML0-WG00-1001 | 55 inches, 2500 nits, 1920x1080, LID55A, with 5mm AG Glass, AML T982, 4GB/32GB eMMC, with IR Remote, Self Check Board. Full IP56. Light Sensor, AC100~240V. |
catalog（1）
Download All Catalogs
