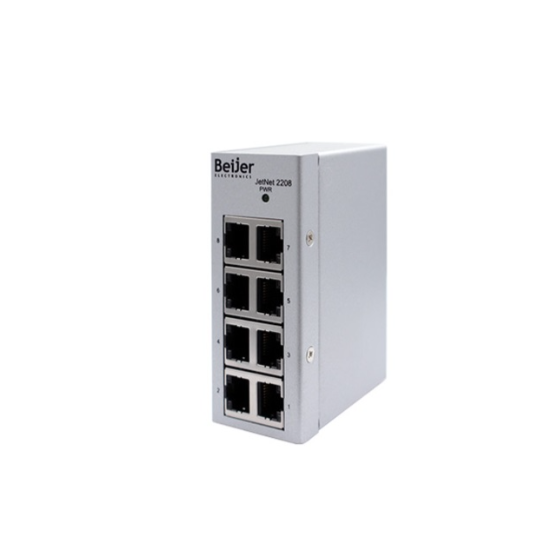

8-Port Industrial Ethernet Switch JetNet 2208-T8
Beijer Electronics JetNet JetNet 2208-T8
Beijer, industrial Ethernet switch, operating temperature -40 to 70°C, 8×RJ45 ports 10/100Base T(X)
【Beijer JetNet 2208-T8 Features】 ■ 8-port 10/100Base-TX (RJ-45) ■ Compliant with IEEE 802.3 / 802.3u / 802.3x / 802.3p ■ Power input: 12/24/48V DC single input ■ Power consumption: maximum 2.4W ■ Compact design suitable for DIN rail mounting (98mm (H) × 39mm (W) × 72mm (D)) ■ Enclosure: Metal case compliant with IP30 ■ Operating temperature range: -40℃ to 75℃ ■ Operating humidity: 0 to 95% RH (no condensation) ■ Vibration and shock test compliant (EN 60068-2-6, -2-64, -2-27) ■ Compliant with UL/cUL 62368-1, FCC Part 15B, CE, KCC, UKCA certifications
Inquire About This Product
basic information
Specifications ■Interface RJ-45 Ports: ■8 Ports 10/100Base-TX ■Power Supply Input Voltage: 12/24/48V DC (1 system) Power Consumption: Maximum 2.4W (@48VDC) Isolation: 1.5KV Isolation Relay output for power failure notification included ■Mechanical Dimensions: 98mm (H) × 39mm (W) × 72mm (D) (excluding DIN rail) Weight: Approximately 330g (main unit), 434g (including packaging) Mounting Method: DIN rail mount ■Environmental Specifications Operating Temperature: -40 to 75℃ Operating Humidity: 0 to 95% RH (without condensation) Vibration Resistance: EN 60068-2-6 / 2-64 Shock Resistance: EN 60068-2-27 ■Certification & EMC EMC: EN 61000-6-2:2005, EN 61000-6-4:2019, EN55032:2015 + A11:2020, EN55035:2017 + A11:2020 EMI: FCC Part 15 Class A Safety Standards: UL/cUL 62368-1
Price information
Open price
Delivery Time
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Cold outdoor, offshore, railway, ships, oil refinery, coal mine, pharmaceutical company, various factories, meteorological station.
Line up（3）
| Model number | overview |
|---|---|
| JetNet 2208-T8 | 8 Port Industrial Switch, 8x RJ45 ports |
| JetNet 2208-T7-SC1-SM | 8 Port Industrial Switch, 7x RJ45 Ports, 1x Single-mode fibre with SC Connector |
| JetNet 2208-T7-SC1-MM | 8 Port Industrial Switch, 7x RJ45 Ports, 1x Multi-mode fibre with SC Connector |
