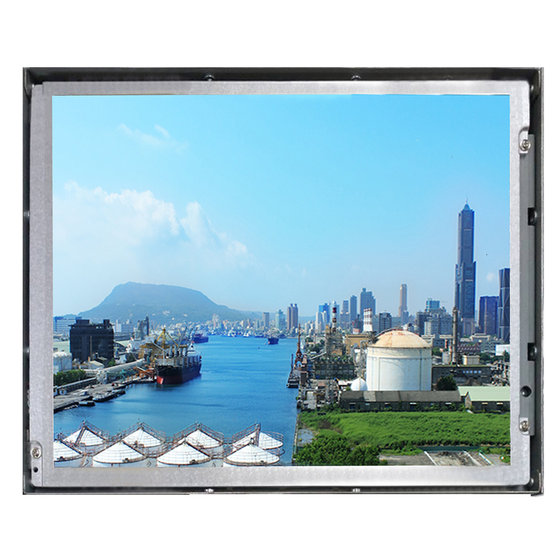

Secu6, supports high brightness of 1,000 cd/m2, HDMI, VGA, DVI inputs, ideal for embedded applications due to open frame.
【Secu6 FSO1000 Features】 ■10.4" 1024 x 768 TFT LCD ■Supports high brightness of 1,000cd/m2 (optional) ■Projected capacitive 10-point multi-touch panel (optional) ■Supports 3H/Anti-Glare ■Input signals: HDMI, VGA, DVI ■Slim and lightweight design ■Includes mounting brackets on four sides (VESA 100×100mm compatible) ■Supports extended temperature range of -30 to 60℃ (optional) ■Ideal for embedded applications due to open frame design
Inquire About This Product
basic information
Specifications - Panel: 10.4-inch TFT LCD - Physical resolution: 1024 x 768 - LCD panel brightness: 470cd/m² (Option: 1000cd/m²) - Touch panel: Projected capacitive multi-touch/resistive touch (optional) - Input connectors: 1xHDMI, 1xVGA, 1xDVI - Viewing angle: 178º/178º - Input power/consumption: DC12V/15W - Mounting method: Comes with a 4-side mounting bracket (VESA 100×100mm compatible) - Operating temperature: 0~50°C (Option: extended temperature -30~60°C) - Dimensions (WxHxD)/Weight: 246 x 186.9 x 34 mm / 1.5 kg - Warranty period: 1 year
Price information
Open price
Delivery Time
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Stable operation is possible in public facilities, financial terminals, the medical field, embedded systems, and FA applications, among others.
Line up（1）
| Model number | overview |
|---|---|
| FSO1000 | 10.4-inch Open Frame Industrial LCD Monitor |
