Solar Panel PV Recycling Hammer

A system that allows solar panels to be easily and safely separated into aluminum frames, terminal boxes, glass, and pack sheets.

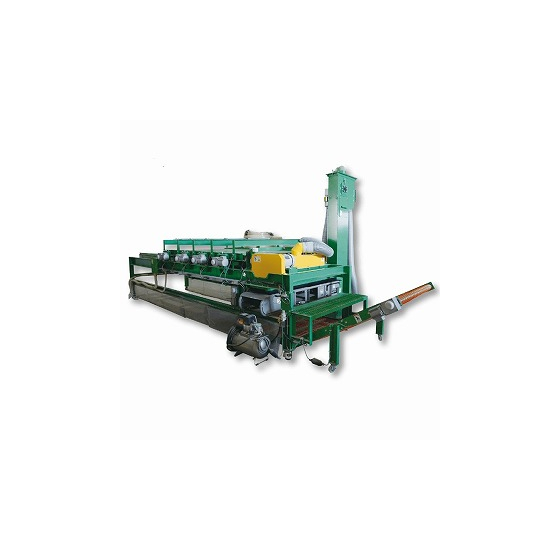

The "PV Recycling Hammer" is a compact, flat-mounted device. It can easily and safely separate discarded solar panels into aluminum frames, terminal boxes, glass, and pack sheets. The main body consists of an aluminum frame separation device and a glass separation device. The aluminum frame separation device can separate the aluminum frame and terminal box simultaneously, while the glass separation device can almost completely peel and recover glass in a single processing cycle. Variations such as fully automatic and semi-automatic models that can be operated by one person have been added. It is now also capable of handling the crushing of back sheets with an eye on the outlet. Two-stage back sheet crushing device This equipment is a two-stage crushing machine. In the upper crushing chamber, a slanted hydraulic pusher reliably captures and crushes the target material. In the lower crushing chamber, the falling target material is further finely crushed. The hole diameter of the screen can be manufactured according to customer requests. 1. It can handle all materials with high hardness, such as PP, ABS, PVC, and PS. 2. Being two-stage, it achieves space-saving without wasting factory layout. 3. The slanted hydraulic pusher reliably captures and crushes the target material.

Crusher
