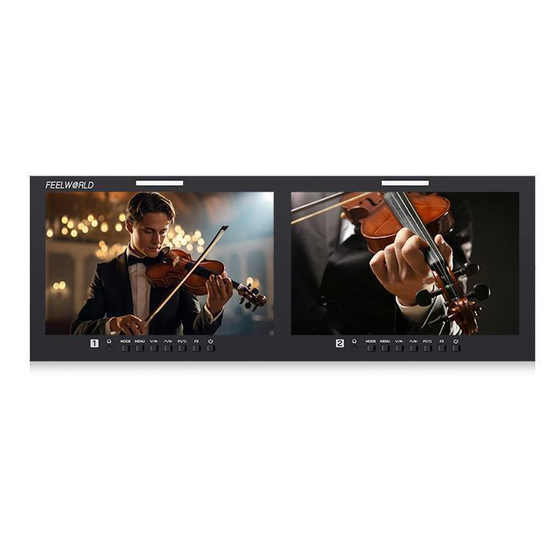

FEELWORLD, 10.1 inch, dual-screen LCD monitor, 4K HDMI & 3G-SDI, 4U rack mount monitor
【FEELWORLD D101 PLUS Features】 ■ 10.1-inch wide (16:10) dual-screen IPS LCD panel ■ 1920x1200 high-resolution LCD ■ High resolution 4096x2160 (4K DCI) display (HDMI) ■ High resolution 1920x1080 (Full HD) display (SDI) ■ 3D LUT loading, editing, and display ■ Rich input and output options 3G-SDI input x2, 3G-SDI output x2 HDMI input x2, HDMI output x2 Video input (BNC) x2, Video output (BNC) x2 ■ Shooting assistance features (Peaking Filter, Check Field, etc.) ■ Rack mountable ■ XLR power connection available
Inquire About This Product
basic information
Specifications - Panel: 10.1-inch wide (16:10) x 2 IPS LCD with LED backlight - Display resolution: 480i to 4096x2160p (4K) - Physical pixels: 1920x1200 - LCD brightness: 500cd/m2 - Contrast: 1500:1 - Viewing angle: 80°/80° (left/right) 80°/80° (up/down) - Input signals: 2 SDI, 2 HDMI (2.0), 2 Video, 2 Audio, Tally, 2 USB, LAN - Output signals: 2 SDI, 2 HDMI (2.0), 2 Video, 2 Audio - SDI input/output: BNC - Video input, Video output: BNC - Power supply / Power consumption: DC 9V to 24V / 24W - Dimensions / Weight: 482(W)x177(H)x25(D)mm / 2kg - Operating temperature: -10 to 60℃ Package contents - Main unit - AC adapter AC100V DC12V - TALLY lamp adapter kit - USB-A to mini USB conversion cable - Manual
Price range
Delivery Time
※If in stock, we will deliver immediately.
Applications/Examples of results
Full HD camera, monitor use for movie shooting, etc.
catalog（1）
Download All Catalogs
Company information
Currently, Taiwan has become a global supply base for industrial electronic equipment, and we aim to contribute to the development of Japanese industry by providing excellent industrial electronic equipment from Taiwan to Japanese engineers. As a specialized trading company for industrial electronic equipment, we will supply the necessary industrial electronic devices (LCD displays, LCD modules, embedded PCs, AI embedded PCs, panel PCs, CPU boards, measurement and control boards, network devices, video equipment, GPS devices, wireless transmission devices, IoT sensors) to engineers.
