Suitable for discharging drains from compressors and similar equipment! Usable pressure ranges from 0 to 1.4 MPa.

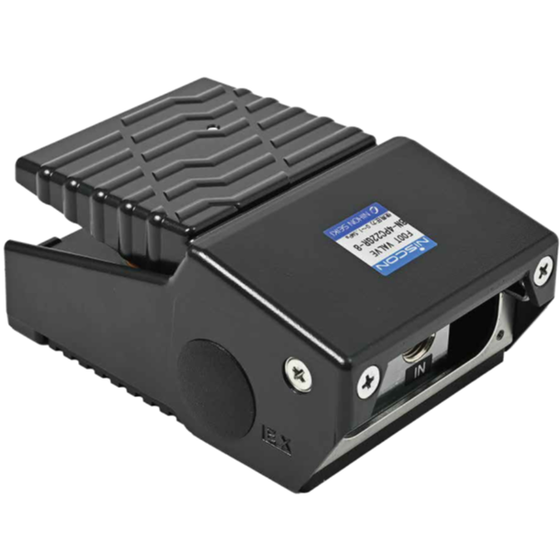

The "BN-4PC Series" is a foot-operated ball valve that can be installed on the floor, allowing for quick drainage operations without getting your hands dirty or bending down. It features a PTFE seat, providing excellent sealing performance. Additionally, it is a compact type with a low height. Please feel free to contact us when you need assistance. 【Features】 ■ Easy to operate ■ Usable up to medium pressure (1.4MPa) ■ Excellent sealing performance ■ Outstanding durability ■ Compact *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Excerpt)】 ■Number of Ports: 2 ports ■Nominal Diameter: 8A ■Fluid Used: Air, Drain, Water ■Operating Pressure: 0 to 1.4MPa ■Pressure Resistance: 2.1MPa ■Foot Force: 200N *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Nihon Seiki began manufacturing and selling pneumatic equipment in 1955. In addition to pneumatic cylinders, pneumatic pressure regulators and conditioning equipment, and compressed air dehumidifiers, they also manufacture and sell nitrogen gas generators and cold air generators as applications for compressed air. They are active in a wide range of industries, including industrial machinery, the medical industry, the shipping industry, and the vacuum industry, and for about 60 years, they have continued to meet the advanced demands of their customers under the motto of "practicing sincerity," consistently creating unique pneumatic equipment. Their products can be broadly classified into three main categories: drive and control equipment, dehumidifying devices, and pneumatic application equipment. Currently, regardless of traditional products, technologies, and sales channels, they are actively engaged in product development aimed at further expanding the field of pneumatic application equipment, driven by the concept of "new."
