Ready to use, easy to use. Ozone concentration meter rental.
Our company has been manufacturing and selling ozone decomposition devices as a countermeasure for ozone generated during the introduction of UV ozone cleaning equipment. In response to requests for measuring actual ozone concentration when introducing ozone decomposition devices, we have started renting out ozone concentration meters.
Inquire About This Product
basic information

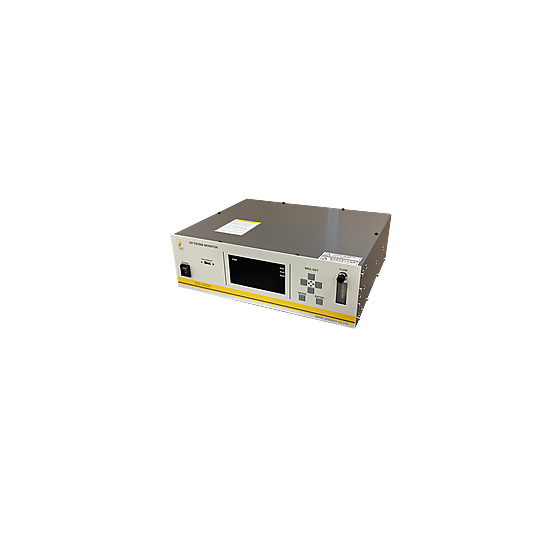

Product Name: EG-3000D Ozone Monitor (Manufactured by Ebara Corporation) Measurement Principle: Ultraviolet Absorption Measurement Range: 0–10ppm ±0.05ppm 0–200ppm ±1ppm Sampling Method: Suction by built-in sampling pump Measurement Cycle: Normal Mode 10, 15, 20, 30, 60 seconds Continuous Mode updates measurement every 1 second Power Supply: AC100V Power Consumption: 45VA Dimensions: W482 × D345 × H132.5 (mm) Weight: Approximately 12kg Operating Environment: Temperature: 0–45℃ (Recommended temperature: 5–40℃) Relative Humidity: 10–85% (No condensation)
Price range
P2
Delivery Time
P1
Applications/Examples of results
On-site ozone concentration measurement. Continuous monitoring allows for the observation of concentration changes as well.
Company information
1) Dip Coating Business We provide a comprehensive dip coating system featuring ultra-low speed ranges, stable lifting speeds without speed variations, and an interface designed with user operability in mind. Based on previous examples of dip coating usage, we will collaborate with customers to consider appropriate coating conditions and offer new approaches. 2) UV Ozone Cleaning Equipment (UV Cleaner) We handle cleaning equipment utilizing a dry process with UV (ultraviolet) light. Our offerings range from small research units to production equipment, and we also provide devices for UV curing in addition to cleaning and modification.
