Laser, signals, and quantum are captured at 2 GHz. Ultimate Performance Model.

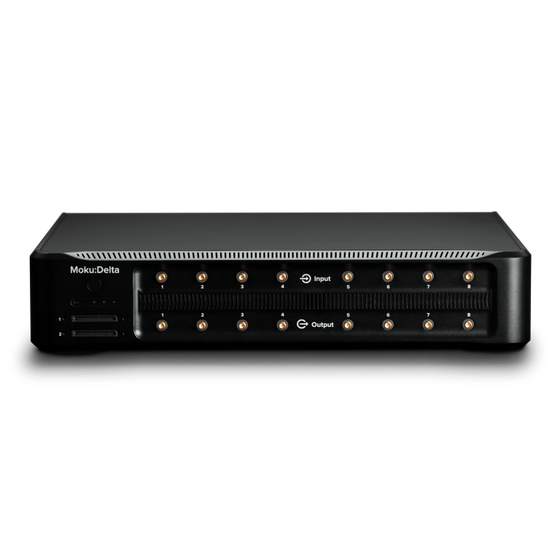

The multi-measurement device "Moku:Delta" is an FPCA-based test device that can utilize up to 14 types of measurement functions in a single unit. It features 8 channels of 2 GHz, 14/20 bit analog input, 8 channels of 2 GHz, 14 bit analog output, and 32 channels of bidirectional digital I/O, allowing for integrated execution of diverse signal processing, control, waveform generation, and analysis in one device. The core of the computational processing employs the "Xilinx UltraScale+ RFSoC FPGA." In addition to an ultra-stable on-board reference clock with ±1 ppb, it also supports external clocks of 10 MHz / 100 MHz and GPS synchronization, achieving high-precision timing synchronization.
Inquire About This Product
basic information
■Main Specifications - Analog Input: 8 ch, 2 GHz, 5 GSa/s - Analog Output: 8 ch, 2 GHz, 10 GSa/s - Noise Floor: 10 nV/sqrt, 2 GHz, 5 GSa/s - Clock Stability: 1 ppb OCXO ■A total of 14 types of functions, including "Measurement & Analysis," "Waveform Generation," and "Control," can be used with a single unit. <Measurement & Analysis Functions> - Oscilloscope - Spectrum Analyzer - Data Logger - Phase Meter - Lock-In Amplifier - Frequency Response Analyzer - Time & Frequency Analyzer - Logic Analyzer & Pattern Generator <Waveform Generation Functions> - Function Generator - Arbitrary Waveform Generator <Control Functions> - Laser Lock Box - PID Controller - Digital Filter Box - FIR Filter Builder *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please feel free to contact us.
