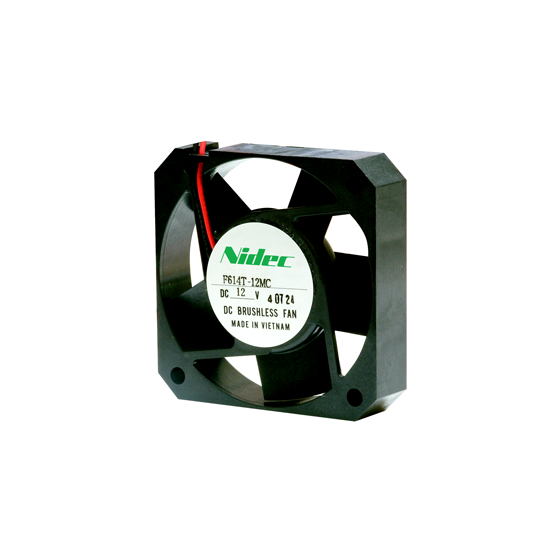

62mm square brushless fan motor
Compact and slim (62 × 62 × 14.5 mm) Lightweight (approximately 40 g) Low noise at 23 dB(A) (MC type) ◆ Structure Frame and impeller: ABS/PBT alloy Bearing: 1 sliding bearing
Inquire About This Product
basic information
Size: □62 mm × 14.5 mm Rated Voltage: DC 5 V / DC 12 V Rated Current: 0.10 A / 0.06 A Rotational Speed: 2,900 min⁻¹ Airflow: 0.36 (m³/min) Static Pressure: 20 Pa Noise: 23 dB (A) Remarks: Bearing: 1 sleeve Operating Environment: -10~+60 ℃ (35~85% RH)
Price range
Delivery Time
Applications/Examples of results
Communication equipment, inspection devices, power supplies, medical instruments, etc.
