Fan speed can be set continuously! Temperature and fan speed at four locations are displayed on the LCD screen.

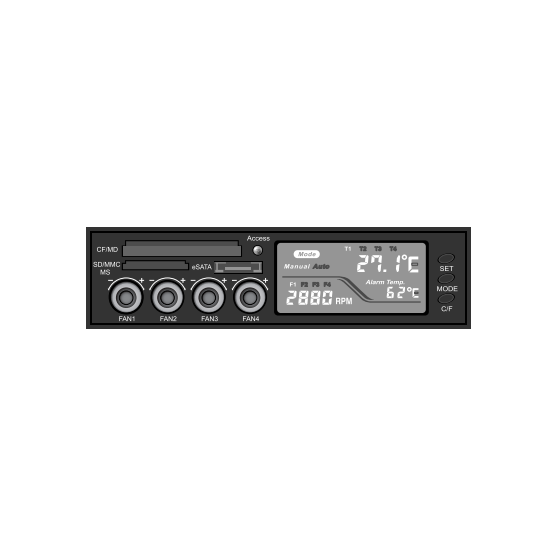

The "FM-06" is a multifunctional fan controller for 5.25-inch bays that includes a USB 2.0 card reader. It displays the temperature and fan speed at four locations on an LCD screen. By adjusting the individual fan speeds with the front volume control, it achieves a quiet environment. It allows for temperature alarm settings at four locations, and abnormal temperatures are warned with an alarm sound. 【Features】 ■ Stepless fan speed settings ■ Displays temperature and fan speed at four locations on an LCD screen ■ Adjusts individual fan speeds with the front volume control ■ Allows for temperature alarm settings at four locations ■ Warns of abnormal temperatures with an alarm sound ■ Built-in USB 2.0 card reader *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Partial)】 ■ Fan speed adjustment volume: 4 (stepless setting) ■ DC output: 5.0V to 11.0V ± 10% (maximum 300mA each) ■ LCD screen: Fan speed display, temperature display, alarm temperature display ■ eSATA port: 1 (7-pin female) ■ Card reader slots: CF/MD×1, SD/MMC/MS×1 ■ Main unit size: W149×D78×H42mm (excluding cables and protrusions) *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
