Supports 3-pin and PWM 4-pin fans! Automatic fan control settings can be configured for each channel.

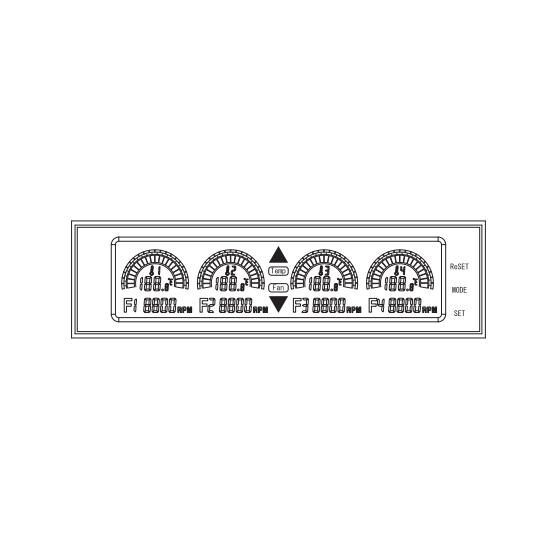

The "FM-07" is a fan controller for 5.25-inch bays that displays the speeds of four fans and the temperatures of four locations on an LCD. By constantly monitoring the temperature and adjusting the individual fan speeds, it supports the creation of a quiet environment. Each channel can have four types of automatic fan control settings. Additionally, it warns of abnormal temperatures and fan speeds with an alarm sound and on the LCD. Please feel free to contact us if you need assistance. 【Features】 ■ Four types of automatic fan control settings available for each channel ■ Displays the speeds of four fans and the temperatures of four locations on the LCD ■ Indicator levels rise and fall according to temperature changes ■ Temperature alarms can be set for each channel at four locations ■ Alarm mute function ■ Compatible with 3-pin and PWM 4-pin fans *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Partial)】 ■ For 5.25-inch bays ■ Fan control: Voltage control method DC12V ■ Fan speed display range: 0000 to 9900 rpm (unit 100 rpm) ■ Compatible fans: 3-pin / PWM 4-pin (requires pulse output support) ■ DC output: 6/8/10/12±1.0V (maximum 0.5A each) ■ Temperature display range: 0 to 99℃ (unit 0.1) ■ DC input: +5V/+12V *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
