This is a TWELITE board compatible with TWELITE DIP from Monowireless. It has implemented convenient features for the FA environment. 【Features】 - Power enhancement circuit - RST protection circuit - Equipped with FRAM - I2C external pull-up - Input circuit external pull-up
Inquire About This Product
basic information
【FRAM】 - Vendor: Ramxeed - Model Number: MB85RC64TAPNF-G - Capacity: 64kbit - I/F: I2C 【Other Specifications】 - Power Supply Capacitor Capacity: 22μF - RST Bypass Capacitor Capacity: 1μF - RST External Pull-up: 2.2kΩ - I2C External Pull-up: 2.2kΩ - Input Circuit Pull-up: 2.2kΩ (DIO11, DIO12, DIO13)
Price range
P1
Delivery Time
P3
Applications/Examples of results
- Replacement of TWELITE DIP for a board equipped with a connector for programming (RST protection) - Replacement of TWELITE DIP for a board implementing I2C communication (I2C external pull-up) - Replacement of TWELITE DIP for a board requiring constant data retention (FRAM)
Detailed information
-

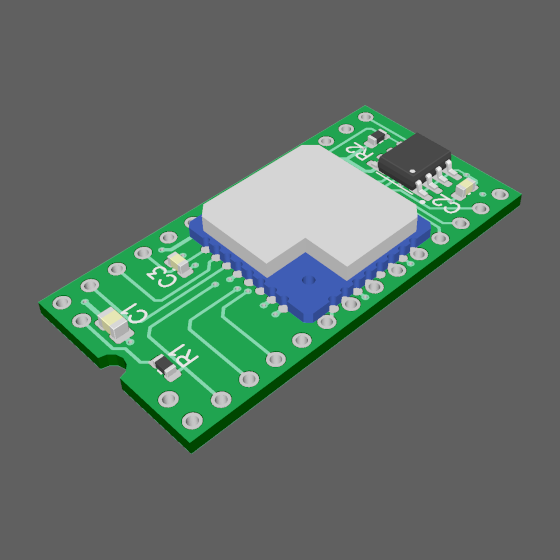

Implementation example
CAD data（1）
| Model number | overview | File |
|---|---|---|
| TWELITE FRAM compatible board |
|
