New options for STN and TFT LCD.
1. High Contrast: VA technology is known for its high contrast, and when combined with STN technology, the display effect is further enhanced. 2. Wide Viewing Angle: Compared to conventional TN technology, VA technology offers a wider viewing angle, with less variation in color and brightness when viewed from different angles. 3. Low Power Consumption: The low power consumption characteristics of STN technology make this display technology excellent in terms of energy efficiency. These characteristics make color film EC-VA STN technology particularly competitive in display devices where high contrast and wide viewing angles are required. 4. Cost: It falls between monochrome STN and TFT LCD.
Inquire About This Product
basic information
【Specifications】 (1) a 4.93” VA type with color LCD module (2) panel driver electronics General SPEC Item Specification Unit Size 4.93” Display Mode Normally Black, VA LCD AA 116.8(H)* 45.8 (V) mm Module outline dimension 116.8 (H)*55.8(V)*2.0(D) mm Brightness 300 nit Back-light 8pcs white EDGE LED Driving Method Dynamic Display Type VA Display Mode Negative Viewing Direction 6 o’clock Polarizer Mode Transmissive Connect Method FPC
Price range
Delivery Time
Applications/Examples of results

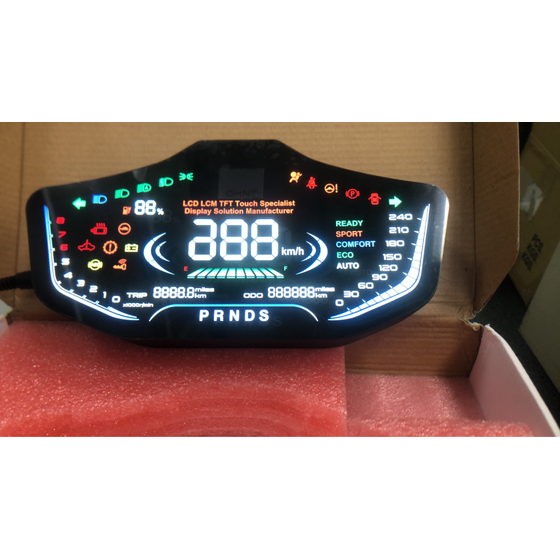

Bike meter, etc.
Company information
The main business is divided into three parts. 1. Design, development, manufacturing, and sales of display module products such as COG, COB, COF, TAB, OLED, and TFT. The lineup includes over 300 items, including custom products, to meet various needs. 2. OCA optical bonding OEM services offer two types of processes: atmospheric and vacuum bonding. Equipment can handle bonding up to 27 inches. 3. We have an SMT production line, providing a one-stop manufacturing service (EMS) from component mounting to board assembly and inspection. We also offer OEM services focused solely on mounting, enabling small-batch production with a variety of products and short lead times. Our belief is to provide "the only satisfactory service to our customers." We will continue to strive for ongoing operation and improvement, aiming to be a company that earns even greater trust from our customers.
