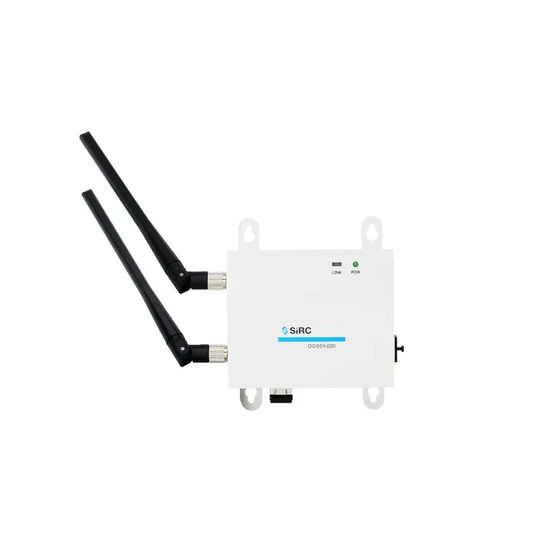

SIRC cloud dedicated gateway that can be installed anywhere.
This is a compact and highly functional gateway dedicated to the SIRC cloud. It transmits measurement data to the cloud via LTE signals, allowing access from anywhere within mobile signal coverage. It can receive data from up to 20 sensors, enabling stable data transmission. ■■Product Features■■ - Sends measurement data via LTE communication - Connects with up to 20 sensors - Dedicated gateway for the SIRC cloud
Inquire About This Product
basic information
【Product Specifications】 <Transmission> LTE (NTT Docomo Line) * Antenna: Omnidirectional Dipole Antenna * Carrier may change without notice <Reception> Bluetooth <Number of Connectable Devices> Up to 20 devices <Connectable Sensors> IoT Power Sensor Unit IoT Angle Sensor Unit IoT Current Sensor Unit <Operating Ambient Temperature> -10 to 50℃ <Humidity> 35 to 85% <Power Supply Voltage> DC12V * Comes with a dedicated AC adapter <Power Consumption> Maximum 5W <External Dimensions> D91×W108×H30mm * Excluding antenna and protrusions <Weight> Approximately 130g
Applications/Examples of results
A compact and highly functional dedicated gateway for SIRC Cloud.
Line up（1）
| Model number | overview |
|---|---|
| DGW01-020 | SIRC Cloud Gateway |
Company information
We provide sensors and communication systems that can easily enable IoT for manufacturing factories/plants by retrofitting existing equipment. Our decarbonization DX solution using power sensors includes the development and provision of demo software for PCs and smartphones, data loggers/LAN gateways for on-premises environments, and data services using the cloud. By visualizing power consumption, we support energy-saving and decarbonization activities. Additionally, we offer remote monitoring solutions using angle sensors that can be retrofitted to analog meters for digital transformation.
