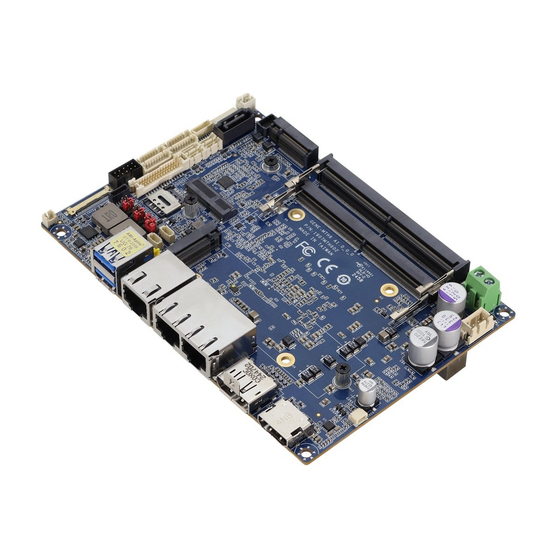

AAEON Intel Core Ultra7 255H/5 225H equipped 3.5-inch standard industrial CPU board
Features: ● Equipped with Intel Core Ultra 5 225H/7 255H (Arrow Lake) ● DDR5 6400MHz dual-channel SODIMM x 2 (up to 96GB) (sold separately) ● LVDS x 1, eDP x 1, HDMI x 1 ● LAN x 3, SATA 6Gb/s x 1, 8-bit GPIO ● USB 3.2 Gen2 x 2, USB 2.0 x 4 ● M.2 2280 M-key x 1, M.2 3052 B-key x 1, M.2 2230 E-key x 1 ● DC input compatible with 9-36V ● Fan-equipped heat sink available for separate purchase GENE-MTH6-FAN: Heat sink with fan GENE-MTH6-HSP: Heat spreader (※ chassis requires heat dissipation) * This model does not include OS/memory/storage.
Inquire About This Product
basic information
【CPU】Intel Core i5-1335U/i5-1335UE 【Supported Memory】DDR5 SODIMM x 2 slots (sold separately) 【Storage】2.5-inch SATA III x 1 (sold separately), B+M-Key 2242 x 1 (SATA/PCIe 3×1), M-Key 2242/2280 x 1 (SATA/PCIe 3×1) 【I/O】Antenna holes x 4, DC jack x 1, HDMI x 2, DP x 2, USB 3.2 x 3, USB 3.2 Type C x 1, RJ45 x 2, Audio x 1, GND Hold x 1, Power button x 1, Reset button x 1, Power LED x 1, HDD LED x 1, USB 2.0 x 4, RS-232/422/485 x 4 【Expansion Slots】E-Key 2230 x 1, Nano SIM card slot x 1 【Input Power】DC 12~36V (DC jack) 【Supported OS】Win 10/11, Linux *This model does not include memory, storage, or OS. For details, please refer to the data sheet.
Price information
Open price
Delivery Time
Applications/Examples of results
Applications: machine control, automation systems, environmental monitoring systems, kiosk terminals, inspection equipment, digital signage, gaming consoles, controllers, data loggers, and many others.
Line up（4）
| Model number | overview |
|---|---|
| GENE-ARH6-0001 | Equipped with Intel Core Ultra 7 Processor 255H / HDMI x 1, DP x 1, LVDS x 1, eDP x 1, GbE x 1, 2.5GbE x 2, USB 3.2 Gen 2 x 2, USB 2.0 x 4, Line-in/Line-out/MIC, COM x 4, DC 9-36V |
| GENE-ARH6-0002 | Intel Core Ultra 5 Processor 225H equipped / HDMI x 1, DP x 1, LVDS x 1, eDP x 1, GbE x 1, 2.5GbE x 2, USB 3.2 Gen 2 x 2, USB 2.0 x 4, Line-in/Line-out/MIC, COM x 4, DC 9-36V |
| GENE-MTH6-FAN | GENE-MTH6 with fan heat sink |
| GENE-MTH6-HSP | Heat spreader for GENE-MTH6 (※Heat dissipation is required in the enclosure) |
