Flexible due to the use of multifilament! It can also be used on machines with a small roll diameter.

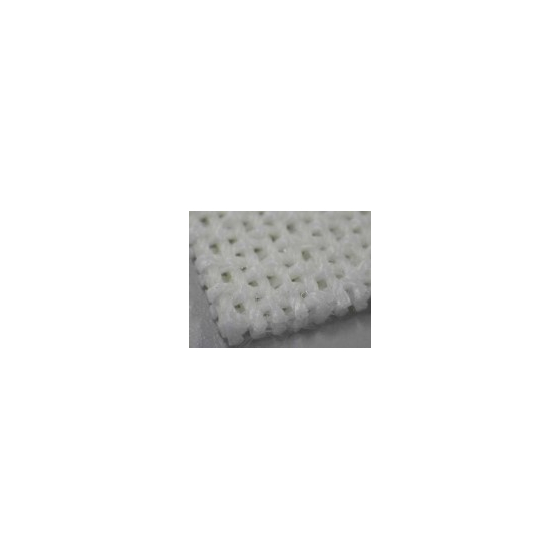

The "R-206TN" is a conveyor belt woven with multi-filament for both the warp and weft threads. Due to the use of multi-filament, it is highly flexible. It can be used in machines with small roll diameters and is suitable for belts used in adhesive tape manufacturing lines. Please feel free to contact us when you need assistance. 【Features】 ■ Uses multi-filament for both warp and weft threads ■ Highly flexible ■ Usable in machines with small roll diameters *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Partial)】 ■Material: Polyester ■Thickness: 1.90mm ■Color: Light Yellow ■Weight: 1,300g/m2 ■Air Permeability: 8,000ccm ■Usable Temperature: Up to 130℃ ■Breaking Strength: 450daN/3cm ■Compatible Joint Type: Folded Spiral Type *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Example of Use】 ■Belt for adhesive tape manufacturing line *For more details, please download the PDF or feel free to contact us.
Detailed information
catalog（1）
Download All Catalogs
Company information
Fushimi Canvas Co., Ltd. is a member of the Shikibo Group, engaged in the development, sales, and technical services of products produced in the Shikibo Industrial Materials Division. In 1908 (Meiji 41), we began manufacturing domestically produced dryer canvas for paper making. Since then, we have been involved in the production of filter cloths for water treatment, corrugator belts for cardboard sheet manufacturing, and various conveyor belts, dedicating ourselves to the development and improvement of epoch-making products over many years. Currently, we have established our position as a leading manufacturer in each field, and our quality and technical service capabilities have received high praise from the industry.
