Design with safety in mind! It automatically cuts off the steam supply when it detects a stop in hot water supply.

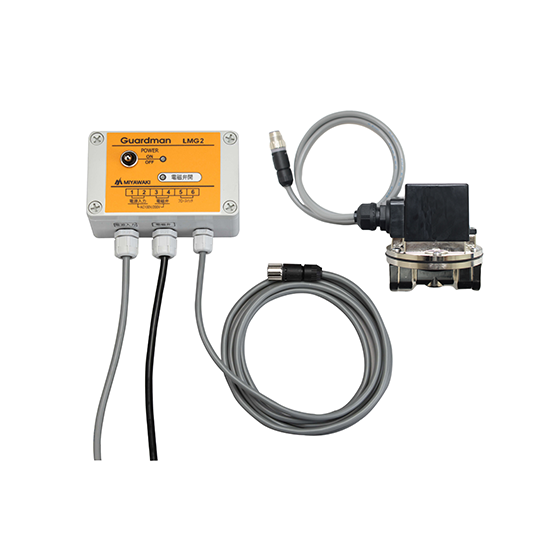

The "LMG2 type" is a dedicated safety accessory for the steam instantaneous water heater "QuickHot LM15/LH15 series." It is a system product that detects the hot water supply of LM15/LH15, opens the steam solenoid valve (commercially available), and closes the steam solenoid valve when hot water is not being supplied. This reduces the load on the water heater itself and prevents the backflow of hot water that can occur in the event of a water heater failure. 【Features】 ■ Design that considers safety - Reduces the load on the water heater - Automatically cuts off steam supply when hot water supply is stopped ■ Model that has passed leaching performance tests *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■Model: LMG2 ■Rated Voltage: AC100/200V (50/60Hz) shared ■Allowable Voltage Variation Range: 85-110% of rated voltage ■Solenoid Valve Drive Voltage: According to rated voltage AC100V 1A max, AC200V 0.5A max ■Control Input: Flow switch *When installed and used with the LH15 model, a minimum flow rate of 5ℓ/min is also required for the LH15 model. Please note that if the minimum flow rate is not met, the solenoid valve may not operate properly, causing fluctuations in the hot water temperature. *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Purpose】 ■Reduction of abnormal temperature rise ■Prevention of hot water backflow into the cold water line that may occur when internal components of the water heater fail *For more details, please download the PDF or feel free to contact us. 【Case Studies】 Case 1. Here is a case where a gas water heater was switched to a steam-type water heater (LM15 model)↓↓ <https://www.miyawaki-inc.com/case-studies/case02> *The LMG1 (the previous model of LMG2) was also introduced simultaneously with the LM15 model.
catalog（2）
Download All Catalogs
Company information
Miyawaki is a specialized manufacturer of steam system products with over 90 years of history. Our product lineup includes steam traps, steam water heaters, and fluid control equipment, widely adopted in industries such as oil refining, chemical plants, and food processing. With decades of technical expertise and proven experience, we support the development of efficient and safe steam systems. From standard products to custom specifications, we offer flexible solutions tailored to existing installations. Delivering trusted quality and service to customers worldwide—feel free to contact us anytime.
