Railway and vehicle-mounted Core Ultra (Arrow Lake-S) CPU, capable of featuring the AI-dedicated NPU "Intel AI Boost."

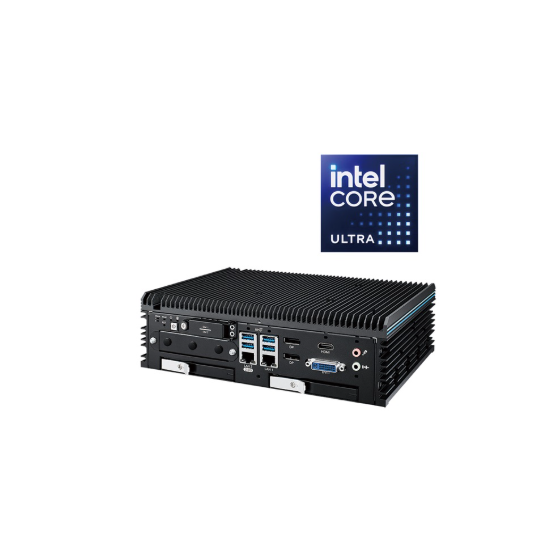

**Vecow ECX-4000 Features** ■ Width 260 × Height 79 × Depth 175 mm ■ Equipped with Intel Core Ultra Series CPU (Arrow Lake-S, LGA1851) ■ 2x DDR5 6400MHz SO-DIMM (up to 96GB) ■ 1 DVI-I, 1 HDMI, 2 DP (supports 8K resolution), 4 independent display outputs ■ Expansion slots: 2x M.2 B Key 2280/3042/3052 (PCIe x2/USB3/SATA), 1x M.2 E Key 2230 (PCIe x2/USB2), 2x SUMIT slots ■ 2x 2.5" SATA HDD/SSD ■ 4x RS-232/422/485, 6x USB3.2 Gen2, 8x DI, 8x DO, 2x external SIM ■ 4x 2.5GbE PoE+ + 1 GbE ■ Extended temperature range -40 to 85°C ■ Wide DC input 9 to 50V ■ Software-controlled ignition key ■ Railway standard EN50155 certified
Inquire About This Product
basic information
Specifications ■ Intel Core Ultra Series CPU ・ Intel Core Ultra 9 Processor 285, 285T ・ Intel Core Ultra 7 Processor 265, 265T ・ Intel Core Ultra 5 Processor 245, 245T ■ NPU Intel AI Boost ■ Memory 2x DDR5 6400MHz SO-DIMM (up to 96GB) ■ Expansion Slots 2x M.2 B Key 2280/3042/3052 (PCIe x2/USB3/SATA), 1x M.2 E Key 2230 (PCIe x2/USB2), 2x SUMIT slots ■ Storage 2x 2.5" SATA HDD/SSD, 1x M.2 M Key 2280 NVMe (PCIe x4) ■ Input Power DC 9-50V input (On, Off, IGN) ■ Operating Temperature ・ 35W TDP CPU: -40°C to 70°C ・ 65W TDP CPU: -40°C to 55°C ■ Certification CE, FCC, ICES, EN50155, EN50121-3-2
Price information
Open price
Delivery Time
※It may vary depending on the quantity and timing, so please feel free to contact us.
Applications/Examples of results
For machine, factory, and building automation/monitoring systems.
