The surface is finished with precision wrapping! It can be used as a master for inspecting machine parts.

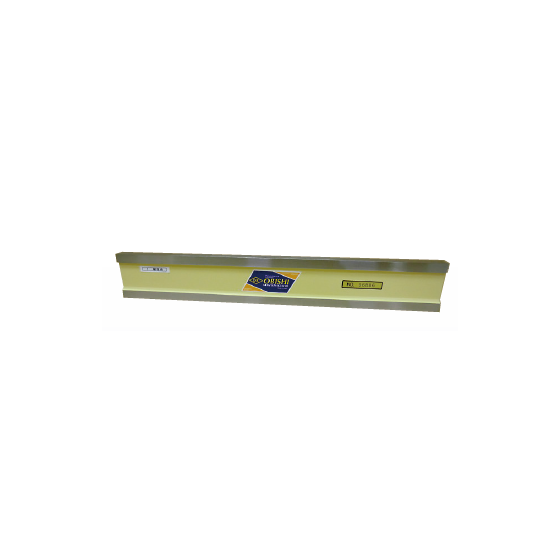

The "Ultra-Precision Steel Straight Reference Gauge" is a product that can be used as a master for straightness inspection of various axes in machine tools, semiconductor-related equipment, and inspection devices. The working surface features a precision lapping finish. The accuracy is provided on one surface only, with dimensions excluding 20mm from both ends. Please contact us for inquiries. 【Features】 ■ Can be used as a straight reference during assembly and adjustment of each axis ■ Can be used as a master for inspecting machine parts ■ Working surface has a precision lapping finish ■ Accuracy is provided on one surface only ■ Dimensions exclude 20mm from both ends for the accuracy surface ■ Hardened product *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage】 ■Straightness inspection of various axes for machine tools, semiconductor-related equipment, inspection devices, etc. *For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Daibishi Instrument Manufacturing Co., Ltd. has been achieving unique results as a member of the precision measurement instrument industry since its founding in 1949 (company established in 1951). We propose suitable solutions tailored to our customers' needs, including automatic measurement devices, dedicated measurement devices, ultra-precision standards, levels, surface plates, and straightness measuring instruments. In addition to standard products, we also accept large surface plates and automatic/semi-automatic measuring devices that include design. We leverage high-level technology to provide high-precision products, ensuring customer satisfaction with short delivery times.
