Due to its stone material, it is less affected by temperature changes! It can be used as a straight reference during assembly adjustments of each axis.

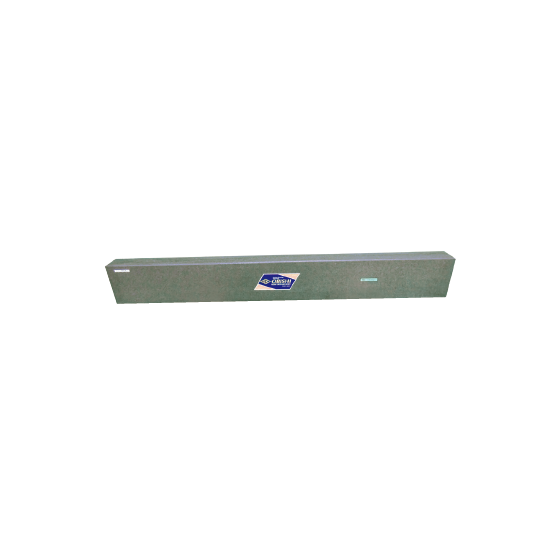

We would like to introduce our "Ultra-Precision Stone Straight Reference Gauge." Made of stone, it is less affected by temperature changes and can be used as a master for straightness inspection of various axes in machine tools, semiconductor-related equipment, and inspection devices. The precision surface is on one side only, with dimensions excluding 20mm from both ends. 【Features】 ■ Can be used as a straight reference during assembly and adjustment of each axis ■ Can be used as a master for inspecting machine parts ■ The working surface is finished with precision lapping ■ Precision surface is on one side only ■ Precision surface dimensions exclude 20mm from both ends ■ Less affected by temperature changes due to its stone material *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Lineup】 ■EF-1001 ■EF-1002 ■EF-1003 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage】 ■Straightness inspection of various axes for machine tools, semiconductor-related equipment, inspection devices, etc. *For more details, please download the PDF or feel free to contact us.
Company information
Daibishi Instrument Manufacturing Co., Ltd. has been achieving unique results as a member of the precision measurement instrument industry since its founding in 1949 (company established in 1951). We propose suitable solutions tailored to our customers' needs, including automatic measurement devices, dedicated measurement devices, ultra-precision standards, levels, surface plates, and straightness measuring instruments. In addition to standard products, we also accept large surface plates and automatic/semi-automatic measuring devices that include design. We leverage high-level technology to provide high-precision products, ensuring customer satisfaction with short delivery times.
