Can be used as a master for inspecting mechanical parts! The surface is finished with precision wrapping.

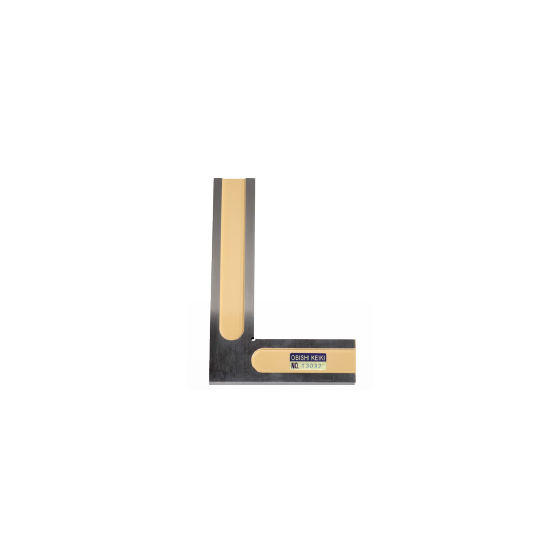

We would like to introduce the "Ultra-Precision Right Angle Reference" handled by Daihishi Instrument Manufacturing Co., Ltd. This reference instrument can be used as a master for checking the right angles of various axes in machine tools, semiconductor-related equipment, inspection devices, and more. It can be used as a right angle reference during the assembly and adjustment of the X-Y axes. The working surface is finished with precision lapping, and the accuracy is applicable only to the outer angle working surface. 【Features】 ■ Can be used as a right angle reference during the assembly and adjustment of the X-Y axes ■ Can be used as a master for inspecting machine parts ■ Working surface is finished with precision lapping ■ Accuracy is applicable only to the outer angle working surface ■ Hardened product *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Lineup】 ■FG-1001 ■FG-1002 ■FG-1003 ■FG-1004 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Purpose】 ■ Right angle inspection of various axes in machine tools, semiconductor-related equipment, inspection devices, etc. *For more details, please download the PDF or feel free to contact us.*
catalog（1）
Download All Catalogs
Company information
Daibishi Instrument Manufacturing Co., Ltd. has been achieving unique results as a member of the precision measurement instrument industry since its founding in 1949 (company established in 1951). We propose suitable solutions tailored to our customers' needs, including automatic measurement devices, dedicated measurement devices, ultra-precision standards, levels, surface plates, and straightness measuring instruments. In addition to standard products, we also accept large surface plates and automatic/semi-automatic measuring devices that include design. We leverage high-level technology to provide high-precision products, ensuring customer satisfaction with short delivery times.
