Raptor Lale/Alder Lake 14th generation Core i9/i7/i5/i3 equipped, robust design capable of 24/7 operation.

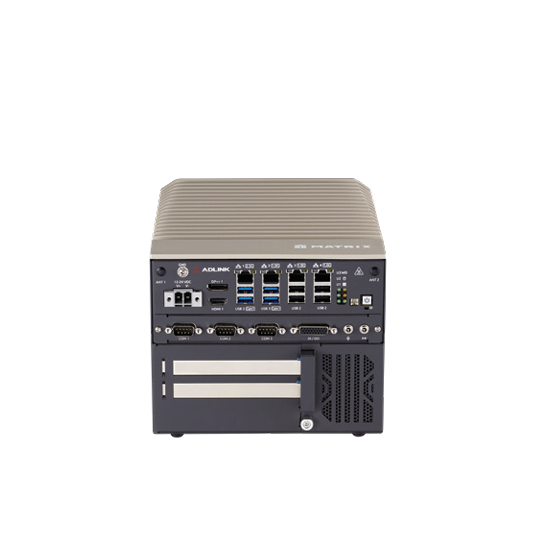

【ADLINK MVP-3120 Features】 ■ Dimensions: 192mm (W) x 156.2mm (H) x 240mm (D), 7.2 liters ■ Fanless design with 14th/13th/12th generation Core i9/i7/i5/i3 CPUs (Raptor Lake/Alder Lake) ■ Memory: DDR5 SO-DIMM (up to 64GB) ■ Storage: 4x SATA-III 2.5" HDD/SSD (optional) ■ Compatible with Microsoft Windows and Linux Ubuntu ■ Customizable with ADLINK AFM (Adaptive Function Module) slot for expansion, custom I/O configuration, and application-specific high-speed access ■ Robust fanless design capable of 24/7 operation ■ Expansion slots: 1 PCIe [x16] + 1 PCI ■ Operating temperature range: -20 to 60℃ ■ Wide DC input: 12V to 24V
Inquire About This Product
basic information
Specifications ■CPU: 14th/13th/12th generation Core i9/i7/i5/i3 fanless CPU (Raptor Lake/Alder Lake) ■Chipset: Intel H610E ■Expansion Slots: 1x M.2 A+ 1x E Key 2230, 1x M.2 M Key 2280, 1 PCIe (Gen4) [x16], 1 PCI ■Ethernet: 1x 2.5GBE (i226), 2x 1.0GBE (i210), 1x 1.0GBE (i219) ■I/O Connectors: 1x HDMI 1.4b, 1x DP++ 1.4, 4x USB3.2 (Gen1), 4x USB2.0, 2x S-232/422/485 (D-Sub9), 1x RS-232 (D-Sub9), 8 DI + 8 DO ■Input Power: DC input 12 to 24V (optional 280W AC adapter) ■Operating Temperature: -20 to 60℃ (35W CPU) / -20 to 50℃ (65W CPU) ■Certification: EN61000-6-4/-2, CE & FCC Class B, CB, UL/cUL
Price information
Open price
Delivery Time
※It may vary depending on the quantity and timing, so please feel free to contact us.
Applications/Examples of results
For machine, factory, and building automation/monitoring systems.
Line up（3）
| Model number | overview |
|---|---|
| MVP-3120 | Supports 14th/13th/12th generation Core i9/i7/i5/i3 (Raptor Lake-S/Alder Lake-S) CPUs, 4 SATA 2.5" HDD/SSD (optional), 1 PCIe (Gen4) [x16] + 1 PCI. |
| MVP-3100 | Supports 14th/13th/12th generation Core i9/i7/i5/i3 (Raptor Lake-S/Alder Lake-S) CPUs, 2 SATA 2.5" HDD/SSD. |
| Option | 280W Industrial AC Adapter |
