Precision industries, of course, can be used in a wide range of applications including architecture, civil engineering, and vehicle-related fields!

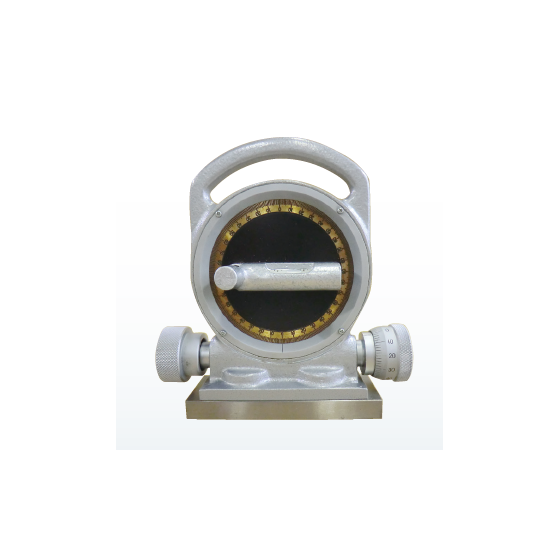

We would like to introduce the A100 model of the tilt measuring level gauge that we handle, with Stock No. 505. This scale is graduated in 360° (180° to the left and 180° to the right) with 1° increments, and the vernier (micrometer head) has a minimum scale reading of 2 minutes with 2° per full rotation. Additionally, by placing it on the workpiece and rotating the micrometer head until the bubble is centered on the scale line, you can read the degree on the main scale and the micrometer head to determine the tilt angle of the workpiece. 【Features】 ■ The body is made of lightweight alloy (with the base being heat-treated) and has a handle. ■ It can be used for a wide range of applications, including precision manufacturing, construction, civil engineering, and automotive industries. ■ The bottom surface is equipped with a V-groove. *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■Model: A100 ■Dimensions (Base × Hmm): 110 × 40 × 158 ■Measurement Range (Degrees): 360 ■Minimum Reading (Minutes): 2 ■Weight (kg): 1.4 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Daibishi Instrument Manufacturing Co., Ltd. has been achieving unique results as a member of the precision measurement instrument industry since its founding in 1949 (company established in 1951). We propose suitable solutions tailored to our customers' needs, including automatic measurement devices, dedicated measurement devices, ultra-precision standards, levels, surface plates, and straightness measuring instruments. In addition to standard products, we also accept large surface plates and automatic/semi-automatic measuring devices that include design. We leverage high-level technology to provide high-precision products, ensuring customer satisfaction with short delivery times.
