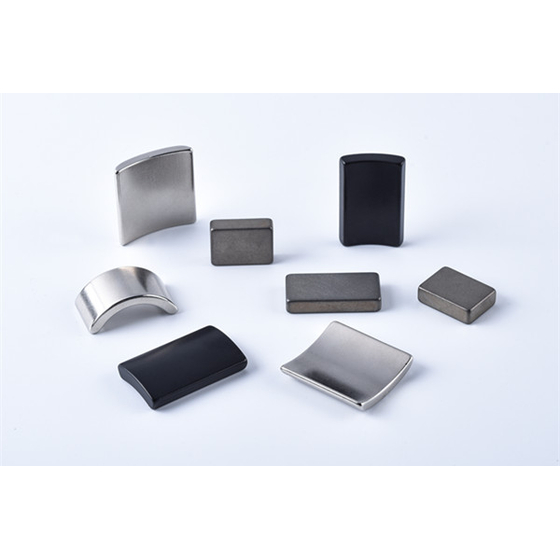

Neodymium magnets (made in China) molded and sintered from neodymium raw materials, including coating.
We provide integrated production from neodymium raw material procurement to molding, sintering, machining, and coating! We accommodate various types of neodymium and processing and coating needs!
Material: Neodymium magnet Performance grade: Available! Shape: Can accommodate various shapes.
Inquire About This Product
basic information
【General Physical Properties】 Curie Temperature: 310-380℃ Maximum Operating Temperature: 80-250℃ Density ≧ 7.4-7.7 G/cm3 Vickers Hardness: 500-700 HV Flexural Strength: 150-400 MPa Tensile Strength: 80-90 MPa Compressive Strength: 1000-1200 MPa Resistivity: 140-160 μΩ·cm Thermal Conductivity: 6-8 W/(m·K) Young's Modulus: 150-200 GPa 【Coating Types】 Zn (4-8 um) Colored Zn (4-8 um) NiCuNi (10-20 um) Ni+Ni (10-20 um) Electroless Nickel (4-8 um) Phosphating+Epoxy (10-20 um) NiCu+Epoxy (10-20 um) Sprayed Epoxy (10-30 um) Phosphated/Passivation (1-3 um) Everlube (8-20 Ω) Teflon (>10 um) Au (10-15 um) Parylene (6-12 um) Al (8-20 um)
Price range
Delivery Time
Applications/Examples of results
【Application Areas】 Automobiles (including EVs) Various motors Linear motors Electronic products Pumps Elevators Robots Communication equipment Medical devices Mining machinery Wind power etc.
