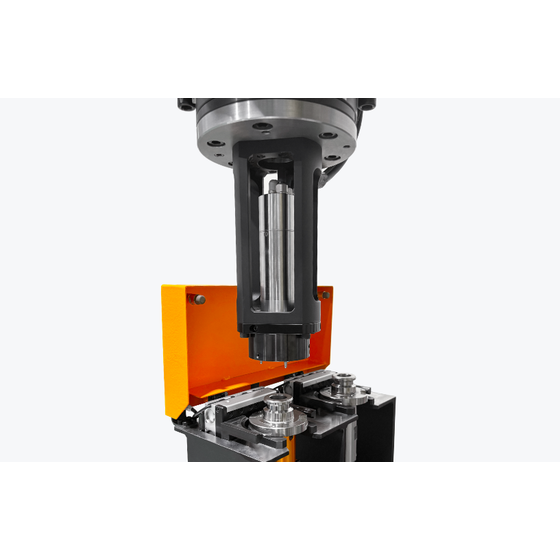

Quick change motor spindle compatible with robotic systems and various specialized machines.
● Attach to robot hands and various dedicated machines, storing various function deburring holders in a magazine like a processing machine. It enables deburring in areas that could not be addressed with a conventional single deburring unit. ● Adopts a motor focused on high torque. Maximum output: 930W, maximum torque: 1.18N·m, rated output: 400W, rated torque: 0.45N·m, rated speed: 8,500 min⁻¹, usable speed: 1,000 to 20,000 min⁻¹, achieving optimal performance for stubborn deburring processing. ● The clamping mechanism is 100% mechanical, using neither air nor electricity. The holder is clamped by pressing a quick-change motor spindle attached to a robot hand or dedicated machine against a dedicated magazine while twisting 30° around the axis. Simultaneously, three locking balls lock the holder to prevent accidental detachment. ● The clamping mechanism includes a built-in proximity sensor to confirm the seating of the holder when clamped. It can determine that the holder is securely clamped (the proximity sensor is a DC three-wire NPN open collector output). ● The unique dual-surface constrained shank holds the holder with a pulling force of 2 tons.
Inquire About This Product
basic information
For more details, please check the link or feel free to contact FINESYSTEM.
Price range
Delivery Time
Applications/Examples of results
For more details, please check the link or feel free to contact FINESYSTEM.
catalog（4）
Download All Catalogs
Company information
Our company specializes in deburring processing. As the demands in the deburring field become increasingly sophisticated and diverse due to high quality requirements and cost issues in the production process, we are committed to research and development, achieving speedy and high-precision deburring processing at a skilled worker level. By utilizing our unique dedicated tools, we aim to support the manufacturing site by significantly reducing processing time and costs. We believe it is our mission to contribute to the improvement of productivity and working environments through continuous technological innovation, and we will strive to earn your continued support.
