Achieves high-quality image capture in a compact design! Equipped with excellent shock resistance and dust and water protection.

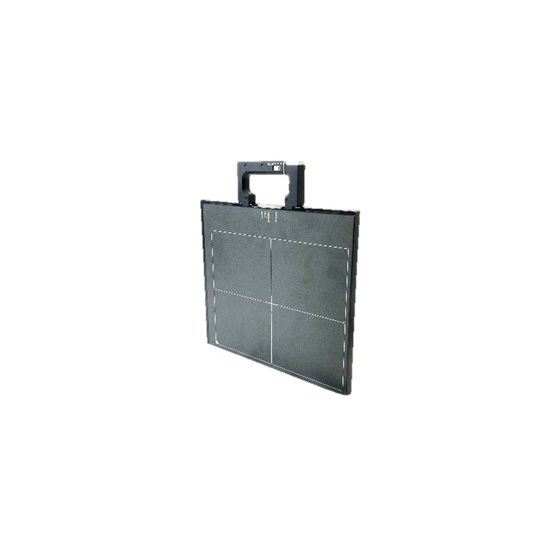

The "VIDI 12" is a smaller size FPD compared to the VIDI 17 (imaging area: 317.44×253.95mm). Like the VIDI 17, it allows for image acquisition at low doses due to its high sensitivity. It provides high-quality digital images with a gray depth of 16 bits (65,536 gray levels). It has passed drop tests from a height of 1 meter, demonstrating excellent impact resistance. With an IP67 (JIS CO920) rating, it has outstanding dust and water resistance, and wireless imaging is also possible. 【Features】 ■ Outstanding impact resistance and dust/water protection ■ Passed drop tests from a height of 1 meter ■ Excellent dust and water resistance with IP67 (JIS CO920) ■ Wireless imaging capability ■ User-friendly with Plug and Play functionality ■ Minimizes the hassle of setup and maintenance for inspections *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【General Specifications (Partial)】 ■Detector Imaging Area: 317.44mm(H)×253.95mm(W) ■Detector Size: 355mm(H)×322mm(W)×17mm(D) ■Detector Weight: 3.4kg ■Gray Depth: 16bit (65,536 Grey Levels) ■Pixel Size: 124µm ■Resolution: 4lp/mm *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
Company information
J-Tech Corporation is a company engaged in the non-destructive testing industry. It also handles temperature measurement and analysis, radiation measurement, and structural design of buildings, actively introducing cutting-edge technologies from around the world to Japan. Through inspection equipment that "works on-site," we contribute to the stable supply of social infrastructure.
