AAEON, equipped with Core Ultra 9 285/285T, Ultra 7 265/265T, and Ultra 5 225/225T.

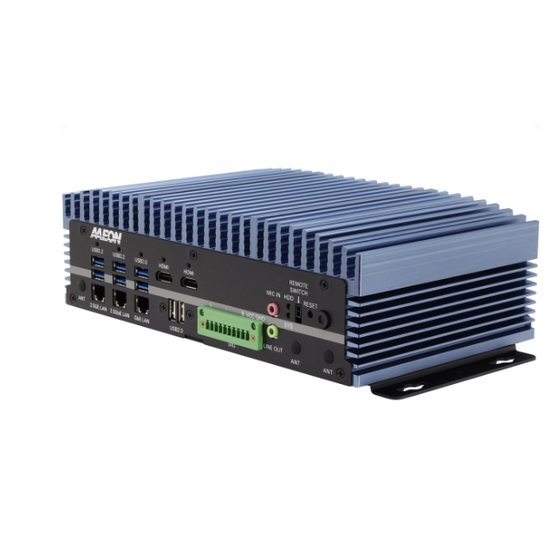

【AAEON BOXER-6648-ARS Features】 ■ Width 264 × Height 81 × Depth 156 mm, 3.34 liters ■ Fanless Core Ultra 9 285/T/7 265/T/5 225/T CPU ■ Intel Xe LPG Graphic Engine ■ Memory DDR5 SO-DIMM, up to 96GB ■ 6/4 USB3.2 + 4/2 USB2.0 ■ 6 COM, 2 2.5GbE + 1 GbE ■ HDMI x 2 (HDMI 4K Display) ■ Operating temperature range -25 to 60℃ ■ Wide DC input 10V to 35V ■ Supported OS: Windows 11 IoT Ent LTSC 2024/Windows 11 PRO/Linux Ubuntu 24.04 or later
Inquire About This Product
basic information
Specifications ■CPU: Core Ultra 9 285/285T/Ultra 7 265/265T/Ultra 5 225/225T Fanless ■Chipset: H810(A1)/Q870(A2) ■Memory: 2x DDR5 SODIMM, up to 96GB ■Storage: 2 x 2.5" SATA HDD/SSD ■Expansion Slots: 1x M.2 2280 M Key NVMe, 1x M.2 2230 E-Key ■Ethernet: 2 x 2.5GbE, 1 x 10/100/1000Base-TX (RJ-45) ■I/O Connectors: 2 x HDMI 1.4b, 6 x RS-232/422/485, 1 x 8Bit DIO, Audio Line out x 1, Mic in x 1 A1: USB3.2(Gen1) x 4, USB2.0 x 4 A2: USB3.2(Gen2) x 6, USB2.0 x 2 ■Input Power: DC Input 10–35V ■Operating Temperature: -25–60℃ (with airflow) ■Vibration: 3 Grms (SSD) ■Certification: CE/FCC Class A
Price information
Open price
Delivery Time
※It may vary depending on quantity and timing, so please feel free to contact us.
Applications/Examples of results
For machine, factory, and building automation/monitoring systems.
Line up（3）
| Model number | overview |
|---|---|
| BOXER-6648-ARS-A1-1010 | Core Ultra 9 285/285T/Ultra 7 265/265T/Ultra 5 225/225T, H810 |
| BOXER-6648-ARS-A2-1010 | Core Ultra 9 285/285T/Ultra 7 265/265T/Ultra 5 225/225T, Q870 |
| Option | AC adapter (120W) |
