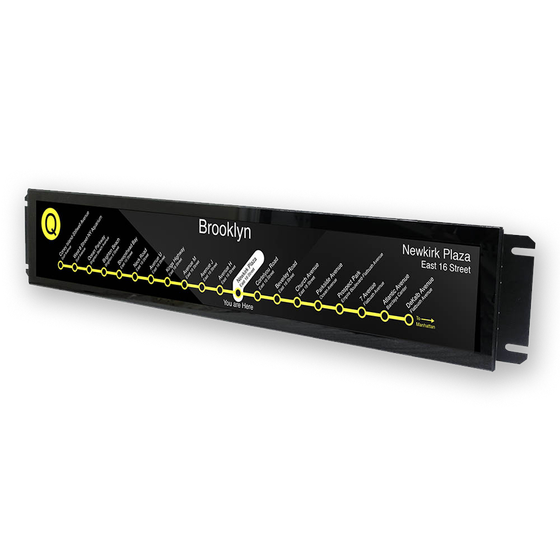

28 inches, equipped with Elkhart Lake Atom/Celeron CPU, high brightness 1,000 cd/m², railway standard EN50155
【LITEMAX ITRP-2845-EHL1-WG01 Features】 ■CPU: Supports Atom x6413E / Celeron J6412 processors ■28" LCD, resolution 1920 x 360, brightness 1,000 cd/m2 ■1 x 260-pin DDR4 3200MHz SDRAM (up to 32G) ■Complies with railway standard EN50155, fully waterproof and dustproof IP65 ■Wide operating temperature range -25°C to 70°C ■Wide power supply DC 17~31V supported (optional: 34~62VDC or 67~143V) ■LCD blackening phenomenon countermeasure (H Tni 110℃) ■Long lifespan backlight (MTBF=100,000 hours) ■Supports 2x HDMI, 2 x USB 2.0 (1 port), 1 x LAN, 1 x COM+DIO (1 port) ■Supports VESA mount installation
Inquire About This Product
basic information
Specifications ■ Display Size: 28" LCD ■ CPU: Atom x6413E / Celeron J6412 Processor ■ Resolution: 1920 x 360 ■ Brightness: 1,000 cd/m2 ■ Memory: 1 x 260-pin DDR4 3200MHz SDRAM (up to 32G) ■ Storage: 1 x M.2 B+M-Key 3042 (WWAN, w/ uSIM) / 2242 (SSD) ■ I/O Connectors: 2x HDMI, 2 x USB 2.0 (1 port), 1 x LAN, 1 x COM+DIO (1 port) ■ Power Supply: Supports DC 17~31V (Optional: 34~62VDC or 67~143V) ■ Mounting Method: VESA mount ■ Operating Temperature: -25°C ~ 70°C
Price information
Open price
Delivery Time
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Monitor applications for PCs and video equipment in advertising, shipping, automotive, medical, and studio settings.
Line up（2）
| Model number | overview |
|---|---|
| ITRP-2845-EHL1 WG01-1001 | IP65 Railway Fanless panel PC, 28 inches, 1000 nits, 1920x360, 3mm glass, Intel Atom x6413E, 4GB DDR4, 128GB SSD, M12 for 1 LAN/2 HDMI/2 COM/2 USB/1 PWR, EN50155, DC 17~31V input |
| ITRP-2845-EHL1 WG01-2001 | IP65 Railway Fanless panel PC, 28 inches, 1000 nits, 1920x360, 3mm glass, Intel Celeron J6412, 4GB DDR4, 128GB SSD, M12 for 1 LAN/2 HDMI/2 COM/2 USB/1 PWR, EN50155, DC 17~31V input |
