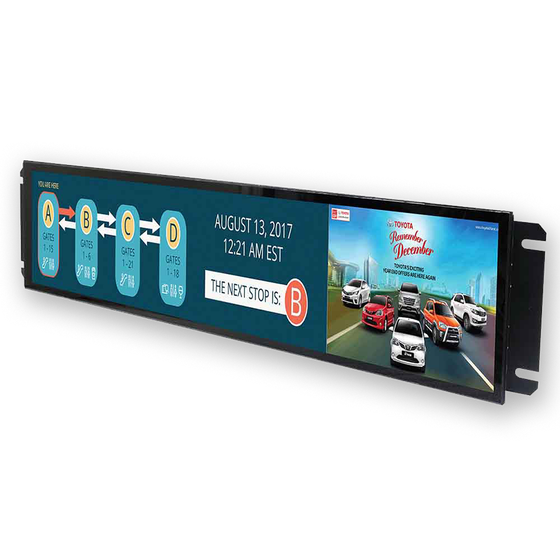

37.6 inches, Elkhart Lake Atom/Celeron CPU, high brightness 1,000 cd/m², railway standard EN50155
【LITEMAX ITRP-3805-EHL1-WG00 Features】 ■CPU: Supports Atom x6413E / Celeron J6412 processors ■37.6" LCD, resolution 1920 x 360, brightness 1,000 cd/m2 ■1 x 260-pin DDR4 3200MHz SDRAM (up to 32G) ■Complies with railway standards EN50155 & EN45545, fully waterproof and dustproof IP65 ■Wide operating temperature range of -25°C to 55°C ■Supports wide power supply DC 17~31V (optional: 34~62VDC or 67~143V) ■LCD blackout phenomenon countermeasure (H Tni 110℃) ■Long lifespan backlight (MTBF=100,000 hours) ■1x HDMI, 2 x USB 2.0 (1 port), 1 x LAN, 1x PWR Connector Type: M12 ■Supports VESA mount installation
Inquire About This Product
basic information
Specifications ■ Display Size: 37.6" LCD ■ CPU: Atom x6413E / Celeron J6412 Processor ■ Resolution: 1920 x 360 ■ Brightness: 1,000 cd/m² ■ Memory: 1 x 260-pin DDR4 3200MHz SDRAM (up to 32G) ■ Storage: 1 x M.2 B+M-Key 3042 (WWAN, w/ uSIM) / 2242 (SSD) ■ I/O Connectors: 1x HDMI, 2 x USB 2.0 (1 port), 1 x LAN, 1x PWR Connector Type: M12 ■ Power Supply: Supports DC 17~31V (Optional: 34~62VDC or 67~143V) ■ Mounting Method: VESA mount ■ Operating Temperature: -25°C ~ 55°C
Price information
Open price
Delivery Time
※Delivery times may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Monitor applications for PCs and video equipment in advertising, shipping, automotive, medical, studios, etc.
Line up（2）
| Model number | overview |
|---|---|
| ITRP-3805-EHL1-WG00-1001 | IP65 Railway Fanless panel PC, 37.6 inches, 1000 nits, 1920*540, LID38B, 3mm glass, Intel Atom x6413E, 4GB DDR4, 128GB SSD, M12 for 1LAN/1HDMI/1USB/1PWR, EN50155, DC17~31V input |
| ITRP-3805-EHL1-WG00-2001 | IP65 Railway Fanless panel PC, 37.6 inches, 1000 nits, 1920*540, LID38B, 3mm glass, Intel Celeron J6412, 4GB DDR4, 128GB SSD, M12 for 1 LAN/1 HDMI/1 USB/1 PWR, EN50155, DC 17~31V input |
