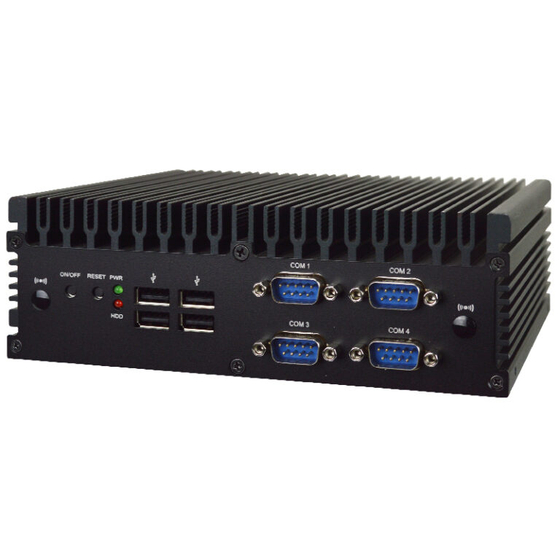

Jetway Industrial Fanless Compact PC equipped with Intel Core Ultra 5 125U/Ultra 7 155U
Features ● Equipped with Intel Core Ultra 7 155U / Core Ultra 5 125U ● 2.5GbE x2 ● HDMI 2.0b x1 (supports 4096 x 2160@60Hz) ● SATA III x1, M.2 E-Key x1, B Key x1 (with Nano SIM slot), M-key x1 2242/2280 (NVMe) ● RS485/422/232 x4, USB 3.2 Gen 2 x3, USB 2.0 x4 ● Supports desktop, wall mount, and DIN rail ● Operating temperature: -20°C to 60°C (AC adapter supports 0 to 40°C)
Inquire About This Product
basic information
【CPU】Equipped with Ultra 7 155U/Ultra 5 125U 【Chipset】SoC 【Supported Memory】DDR5 SO-DIMM x2 (up to 96GB) (sold separately) 【Storage】M.2 2242/2280 M-Key (NVMe) x1 (sold separately) 【Front I/O】USB 2.0 x4, COM x4, Antenna holes x2 【Rear I/O】Antenna holes x4, HDMI 2.0b x1, DP x1, USB 3.2 Gen 2 x3, USB 3.2 Gen1 Type-C x1, LAN x2, GND hold x1 【Expansion Slots】M.2 2230 E-Key x1, M.2 3042/3052 B-Key x1, Nano SIM Card Slot x1 【Input Power】DC 12~36V (DC jack) 【Supported OS】Win 11/10 (64bit), Linux 【Dimensions (W x H x D) (mm)】185x61x142 【Mounting Method】Desktop, Wall mount, DIN rail 【Operating Temperature】-20°C ~ 60℃ (with 0.7m/s airflow - main unit) AC adapter operating temperature is 0 to 40℃ *Memory, storage, OS-less model
Price information
Others
Delivery Time
Applications/Examples of results
Applications: machine control, automation systems, environmental monitoring systems, kiosk terminals, inspection devices, digital signage, gaming consoles, controllers, data loggers, and many others.
Line up（4）
| Model number | overview |
|---|---|
| 【B382FMTU1-A111】 | Equipped with Ultra 5 125U, USB 2.0 x4, RS485/422/232 x4, HDMI 2.0b x1, DP x1, USB 3.2 Gen 2 x3, USB 3.2 Gen1 Type-C x1, LAN x2, GND hold x1, Intel PTT (fTPM) |
| 【B382FMTU1-A211】 | Equipped with Ultra 5 125U, USB 2.0 x4, RS485/422/232 x4, HDMI 2.0b x1, DP x1, USB 3.2 Gen 2 x3, USB 3.2 Gen1 Type-C x1, LAN x2, GND hold x1, TPM 2.0. |
| 【B382FMTU1-A311】 | Ultra 7 155U, USB 2.0 x4, RS485/422/232 x4, HDMI 2.0b x1, DP x1, USB 3.2 Gen 2 x3, USB 3.2 Gen1 Type-C x1, LAN x2, GND hold x1, Intel PTT (fTPM) |
| 【B382FMTU1-A411】 | Ultra 7 155U, USB 2.0 x4, RS485/422/232 x4, HDMI 2.0b x1, DP x1, USB 3.2 Gen 2 x3, USB 3.2 Gen1 Type-C x1, LAN x2, GND hold x1, TPM 2.0 |
