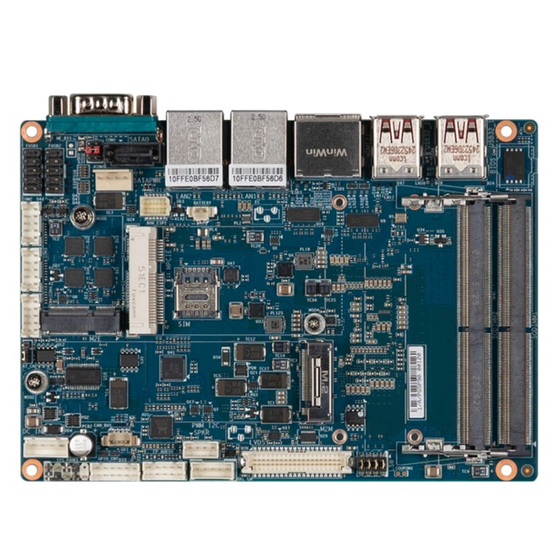

GIGAIPC 3.5-inch standard embedded CPU board equipped with Ultra 5 Processor 225U.
Features ● 3.5-inch board standard ● Equipped with Intel Core Ultra 5 Processor 225U ● Dual-channel DDR5 SODIMMs/CSODIMMs x2 ● 2.5GbE LAN ports x2 ● SATA 6Gb/s port x1
Inquire About This Product
basic information
【Board Standard】3.5-inch board 【CPU】Equipped with Intel Core Ultra 5 225U 【Memory】DDR5 SODIMM/CSODIMM x 2 【Storage】SATA 6Gb/s x 1, M.2 2280 M-Key (PCIe Gen4x4, SATA 6Gb/s) (sold separately) 【Expansion Slot】M.2 2230 E-Key x 1 (PCIe 4.0 [x1] + USB 2.0), Full-size Mini PCIe with SIM slot x 1 【Rear I/O】HDMI x 2, 2.5GbE x 2, USB 3.2 Gen2 x 4, COM x 1 【Pin Header I/O】USB 2.0 x 4, RS-232/422/485 x 3, GPIO 8-bit, CANBus x 1 【Supported OS】Windows 10 / 11 (64 bit) 【Power Supply】DC 9–36V (4-pin terminal block) 【Dimensions (mm)】146 x 101.7mm 【Operating Temperature】0℃~60℃ 【Operating Humidity】20% ~ 95% (without condensation) 【Certification】CE/FCC Class A *Fanless heatsink sold separately *OS-less model
Price information
Others
Delivery Time
Applications/Examples of results
Applications: machine control, automation systems, environmental monitoring systems, kiosk terminals, inspection devices, digital signage, game consoles, controllers, data loggers, and many others.
Line up（4）
| Model number | overview |
|---|---|
| 【QBiP-225UB (MARU5BS)】 | Equipped with Intel Core Ultra 5 Processor 225U, DDR5 SODIMM x2, COM x4, SATA 6Gb/s x1, USB 3.2 x4, USB 2.0 x4, Temperature 0-60℃. |
| 【25ST1-113105-A7R】 | Fanless heat sink (sold separately) |
| 【25ST4-113104-A7R】 | Fan-equipped heat sink (sold separately) |
| 【25ST1-713000-Y0R】 | Heat spreader (sold separately) |
