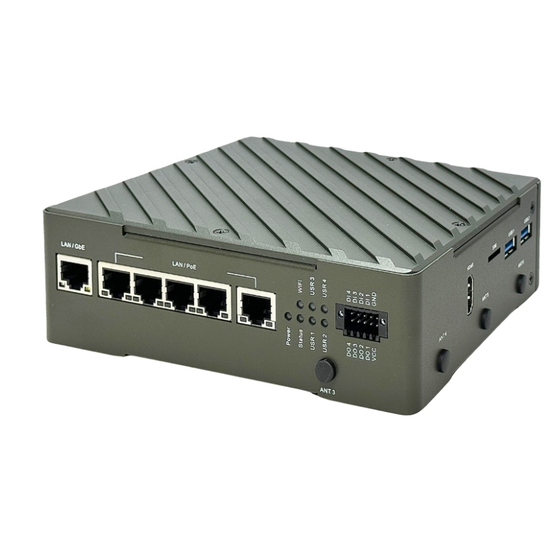

NXP i.MX8M Plus CPU equipped edge AI embedded PC, supports extended temperature, 6 GbE, 2 USB 3.0, 2 COM.
【EverFocus NEC-C501 Features】 ■ Width 161 × Height 52 × Depth 132 mm, 1.11 liters ■ Equipped with NXP i.MX8M Plus CPU ■ Display 1 HDMI ■ 6 GbE, 2 USB3.0, 2 COM ■ Wide DC input 9–36V ■ Extended operating temperature -20–70℃
Inquire About This Product
basic information
Specifications ■Processor NXP i.MX8M Plus, Quad-Core ARM Cortex-A53, 1.6GHz ■Memory Onboard 8GB/4GB/2GB 128-bit LPDDR4 ■Storage 32GB/16GB eMMC, 1 x Micro SD (internal slot, up to 32GB) ■I/O Connectors 5 x GbE (POE supported: 2 NEC-C501-01xx-02), 1 x GbE, 2 x USB 3.0, 1 x Micro USB (for console), 2 x RS-232/485, 1 x HDMI, 1 x DIO (4 IN, 4 OUT) ■Input Power 9–36V DC ■Operating Temperature -20–70℃ ■Certification CE, FCC ■Supported OS Linux Debian 11, Yocto kirkstone 5.15 (optional)
Price information
Open price
Delivery Time
※It may vary depending on quantity and timing, so please feel free to contact us.
Applications/Examples of results
For machine, factory, and building automation/monitoring systems.
Line up（7）
| Model number | overview |
|---|---|
| 2NEC-C501-0101-01 | ARM Cortex A53, LPDDR4 2GB eMMC 16GB, 5 GbE |
| 2NEC-C501-0112-01 | ARM Cortex A53, LPDDR4 4GB eMMC 32GB, 5 GbE |
| 2NEC-C501-0122-01 | ARM Cortex A53, LPDDR4 8GB eMMC 32GB, 5 GbE |
| 2NEC-C501-0101-02 | ARM Cortex A53, LPDDR4 2GB eMMC 16GB, 5 PoE |
| 2NEC-C501-0112-02 | ARM Cortex A53, LPDDR4 4GB eMMC 32GB, 5 PoE |
| 2NEC-C501-0122-02 | ARM Cortex A53, LPDDR4 8GB eMMC 32GB, 5 PoE |
| Option | 4G module, WiFi module |
