Compact storage compatible with USB4 that can accommodate up to four M.2 NVMe SSDs.

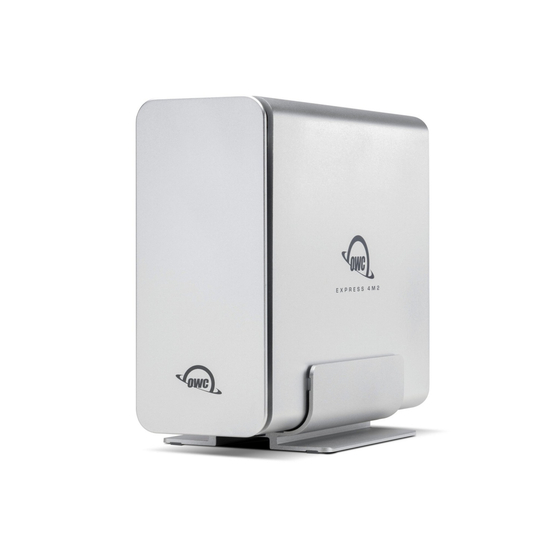

The OWC USB4 Express 4M2 (hereinafter referred to as "this product") is an external case for M.2 NVMe SSDs that supports USB4. With a compact body measuring 60mm in width, 178mm in depth, and 139mm in height (excluding the body), it can accommodate up to four M.2 NVMe SSDs. By connecting to a USB4 port capable of high-speed data transfer of up to 40Gbps (theoretical maximum), you can create a fast, large-capacity, and compact storage environment.
Inquire About This Product
basic information
◎ Main Specifications Product Name: OWC USB4 Express 4M2 Overview: Portable external case for USB4 compatible M.2 NVMe SSD Interface: USB4 x 1 Power Supply: +12V/4A AC adapter Dimensions (Width x Depth x Height): 60mm x 178mm x 139mm (body only) / 80mm x 178mm x 148mm (when using dedicated vertical stand) Weight: 1.4kg (body only, excluding SSD) Included Accessories: USB4 cable, dedicated vertical stand, dedicated AC adapter, tools for drive bay panel, user manual, warranty card ◎ Operating Environment Compatible SSDs: M.2 Type 2230/2242/2280 M-Key NVMe SSD *Does not support SATA connection type SSDs. *Does not support B&M-Key SSDs. *SSD with heatsink is not supported. Computer: Mac and Windows computers equipped with a USB4 or USB 3.2 Gen 2 compatible Type-C port OS: macOS 14 or later, Windows 10 or later
Price information
Open price
Price range
P2
Delivery Time
P2
Applications/Examples of results
- For backing up large-capacity data and as a duplicate environment - For editing, storing, and transferring digital video footage
Detailed information
-
- Supports M.2 NVMe SSDs in three sizes, with actual measured speeds exceeding 3800MB/s for high-speed data transfer performance. - Software RAID support. - Compatible with Mac/Windows.
Line up（1）
| Model number | overview |
|---|---|
| AMU-OWCUS4EXP4M2 | OWC USB4 Express 4M2 |
