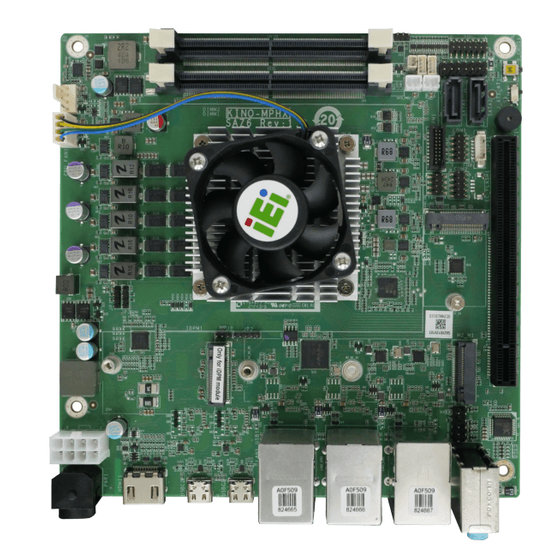

IEI, AMD Ryzen 7040 & 8040G Series Mobile, 2xDDR5-5600 Maximum 64GB
【IEI KINO-MPHX Features】 ■ Supports AMD Ryzen 7040 & 8040G Series Mobile Processors ■ Supports independent displays with up to 4K resolution through 2x USB4 (40Gb/s speed, DP 4096 x 2304 supported), 1 x HDMI 1.4, and 1 x iDPM ■ 2x DDR5-5600, up to 64GB ■ Expansion Slots ・1 x PCIe x16 (Slot1) with x8 Signal Gen4 ・1 x M.2 M key (2242/80, PCIe Gen4 X 4) ・1 x M.2 A key (2230, PCIe Gen4 x1 & USB 2.0) ■ 3 x 2.5 GbE LAN ■ 2 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 2 x SATA, 2 x RS-232/422/485, 2 x USB 2.0 ■ Supports DC 12V power in AT/ATX mode ■ Dimensions: 170mm x 170mm
Inquire About This Product
basic information
Specifications ■CPU: AMD Ryzen 7040 & 8040G Series Mobile Processor ■Chipset: B65 ■Memory: 2xDDR5-5600 Maximum 64GB ■Storage: 2 x SATA 6Gb/s ■Ethernet: 3 x Intel 2.5G LAN ■Interface: 2 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 2 x SATA, 2 x RS-232/422/485, 2 x USB 2.0, 2 x USB4 (40Gb/s speed, supports DP 4096 x 2304), 1 x HDMI 1.4, 1 x iDPM ■Operating Temperature: 0°C to 60°C ■Dimensions: 170 x 170mm
Price range
Delivery Time
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Factory and Building Automation / Control Systems / Communication Systems / Monitoring Systems
Line up（2）
| Model number | overview |
|---|---|
| KINO-MPHX-87A-R10 | Mini-ITX SBC with AMD Ryzen 5 8845HS mobile Processors,DDR5 SO DIMM, Triple Display,Triple Intel 2.5GbE,USB3.2,M.2, RoHS |
| KINO-MPHX-85A-R10 | Mini-ITX SBC with AMD Ryzen 5 8645HS mobile Processors,DDR5 SO DIMM, Triple Display,Triple Intel 2.5GbE,USB3.2,M.2, RoHS |
