Socket LGA1700, 14th generation Alder Lake-S/Raptor Lake-S, 2xDDR4-3200 maximum 64GB

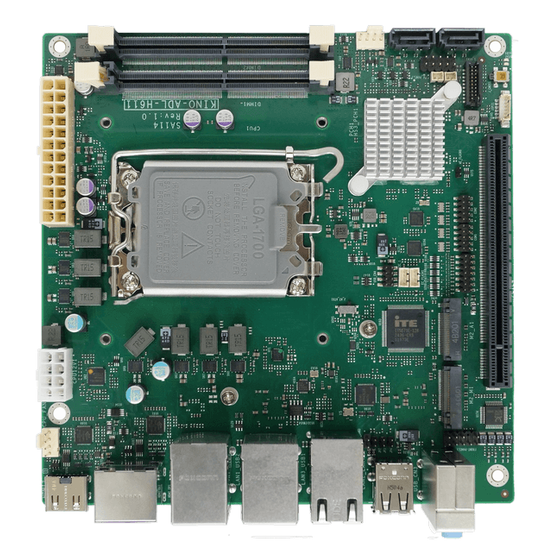

【IEI KINO-ADL-H611 Features】 ■Dimensions: 170mm x 170mm ■Supports 14th/13th/12th generation i9/i7/i5/i3 Alder Lake-S/Raptor Lake-S processors ■Supports independent displays with a maximum resolution of 4K via 2 x HDMI 2.0 and 1 x DP 1.4a ■2xDDR4-3200, maximum 64GB ■Expansion Slots ・1 x PCIe x16 (Slot1) with x16 Signal Gen4 ・1 x M.2 M key (2280, PCIe Gen3 X 4) ・1 x M.2 A key (2230, PCIe Gen3 x1 & USB 2.0) for Wi-Fi/BT ■3 x 2.5 GbE LAN, 1 x GbE LAN ■2 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0, 2 x SATA 6Gb/s, 2 x RS-232/422/485 ■Supports AT/ATX power mode
Inquire About This Product
basic information
Specifications ■CPU: 14th/13th/12th generation Intel Core i9/i7/i5/i3/Pentium/Celeron Alder Lake-S/Raptor Lake-S processors ■Chipset: H610/H610E ■Memory: 2xDDR4-3200, maximum 64GB ■Ethernet: 3 x 2.5 GbE LAN, 1 x GbE LAN ■Interfaces: 2 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0, 2 x SATA 6Gb/s, 2 x RS-232/422/485, 2 x HDMI 2.0, 1 x DP 1.4a ■Operating temperature: 0°C ~ 60°C ■Dimensions: 170mm x 170mm
Price range
Delivery Time
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Factory and building automation / control systems / communication systems / monitoring systems
Line up（1）
| Model number | overview |
|---|---|
| KINO-ADL-H611-R10 | Mini-ITX SBC supports LGA1700 Intel 12th/13th/14th Generation Core i9/ i7/ i5/i3, Pentium and Celeron processor, DDR4, Triple independent displays, quad LAN, USB 3.2, SATA 6Gb/s and RoHS |
