The purpose is to solve the clogging and blockage of powder through air aeration on the inner wall of the hopper and the vibration of elastic disks (rubber disks).

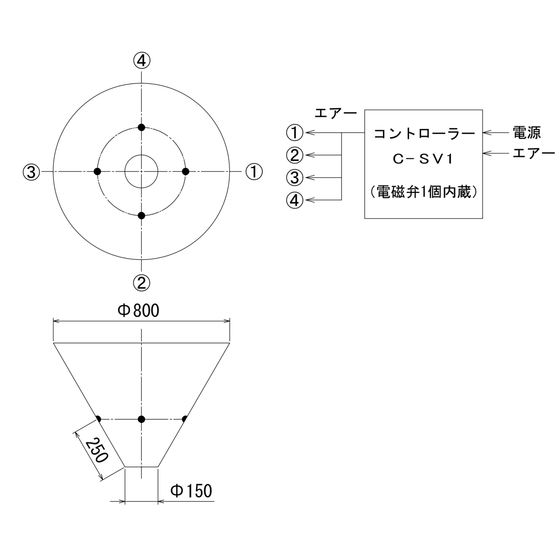

We would like to introduce a case where a chemical manufacturer adopted the "Brodisk." They had installed knockers as a countermeasure for bridging, but it was not very effective, and they were dealing with the issue through manual hammering. After years of hammering, the hopper became uneven, and they decided to update this part and introduced our product. The results have been good, and it is operating smoothly. 【Case Overview】 ■ Hopper Diameter: Ø600 ■ Discharge Diameter: Ø150 ■ Four Brodisks were installed at a position 250mm from the discharge section ■ Control is set to simultaneously turn the air ON/OFF for the four Brodisks *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Product Specifications】 ■ Brody Disk BD-15S-B: 4 pieces ■ Controller C-SV1: 1 unit *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
