Standard equipped with exit full sensor connection terminal! It has high operability and safety.

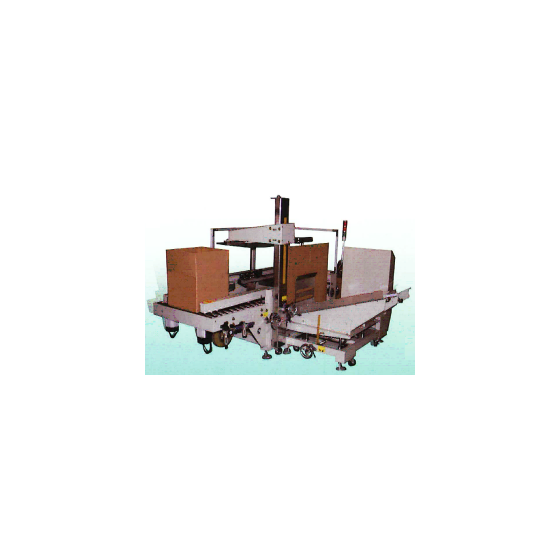

Introducing the case forming machine 'IL-801N' handled by Shirai Co., Ltd. This product allows you to choose between L and R types according to the case opening direction and comes standard with various alarm displays using a combination of a signal tower and a buzzer. It features high operability and safety, with easy setup changes using handle adjustments. Additionally, it is equipped with a standard outlet full sensor connection terminal. 【Features】 ■ High operability and safety (easy setup changes with handle adjustments) ■ Standard alarm displays using a combination of a signal tower and a buzzer (low tape, vacuum failure, tape application error, stagnation, motor overload) ■ Option to select L or R type according to the case opening direction ■ Standard outlet full sensor connection terminal (sensor is optional) *For more details, please refer to the related links or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Partial)】 ■Machine dimensions: Overall width 1,642 × Overall length 2,240 × Overall height 1,690 mm ■Machine weight: Approximately 650 kg ■Tape width: 50 mm (75 mm width is optional) ■Processing capacity: 12 cases/min ■Air consumption: 350 Nl/min ■Power supply: Single-phase 100V / Three-phase 200V (50/60Hz) *For more details, please refer to the related links or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Materials Used (Example)】 ■OPP Tape ■Craft Tape *For more details, please refer to the related links or feel free to contact us.
